MeSoot for Bernard
My friend Bernard had a simple question: Can you make a LED head for my scooter?
Sure and by the way I will do a complete electronics for it.... Thats the way things started.
 MeScoot_B_001.jpg |

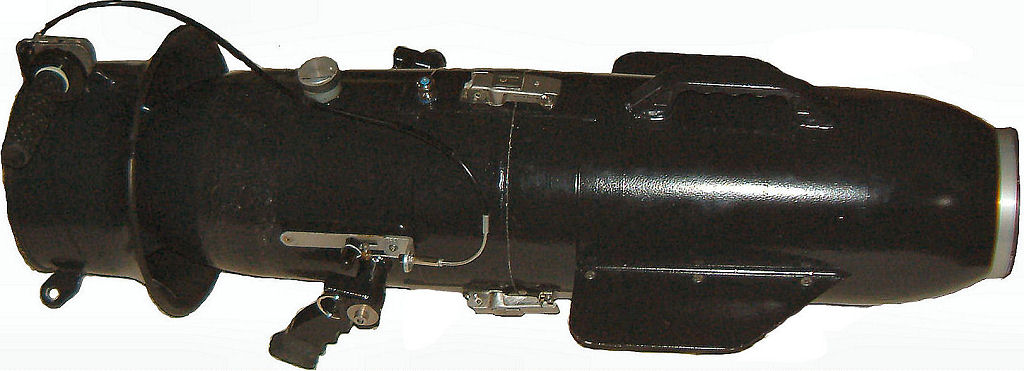

Very nice page from
plongeesanssel that show the original Premeco "militair" scooter
http://plongeesanssel.com/premeco_militaire.html
Aims: more power, more light and lasting much longer:
MeScoot B Handbook.pdf

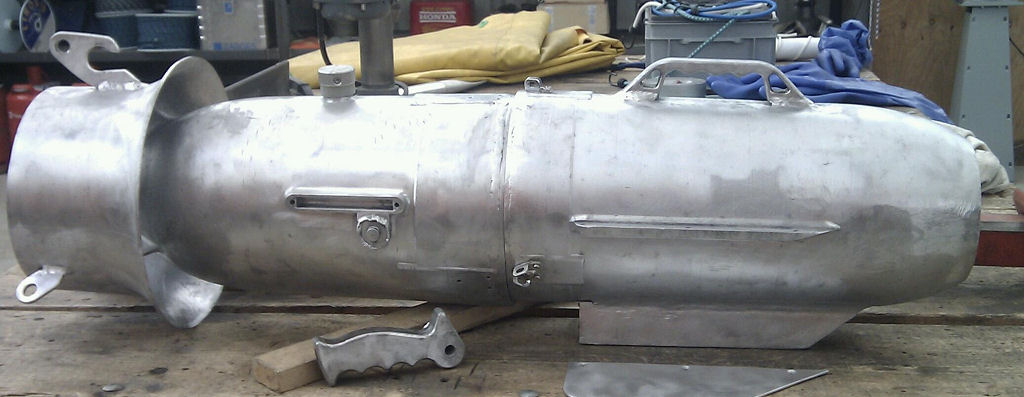

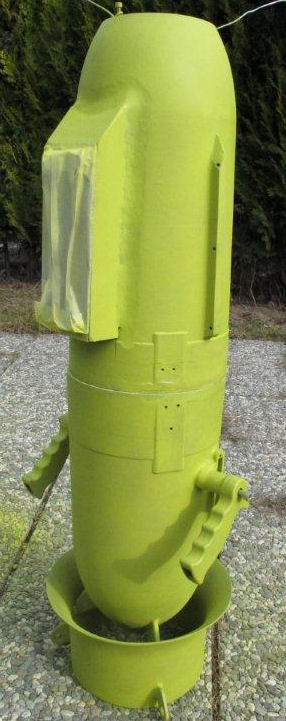

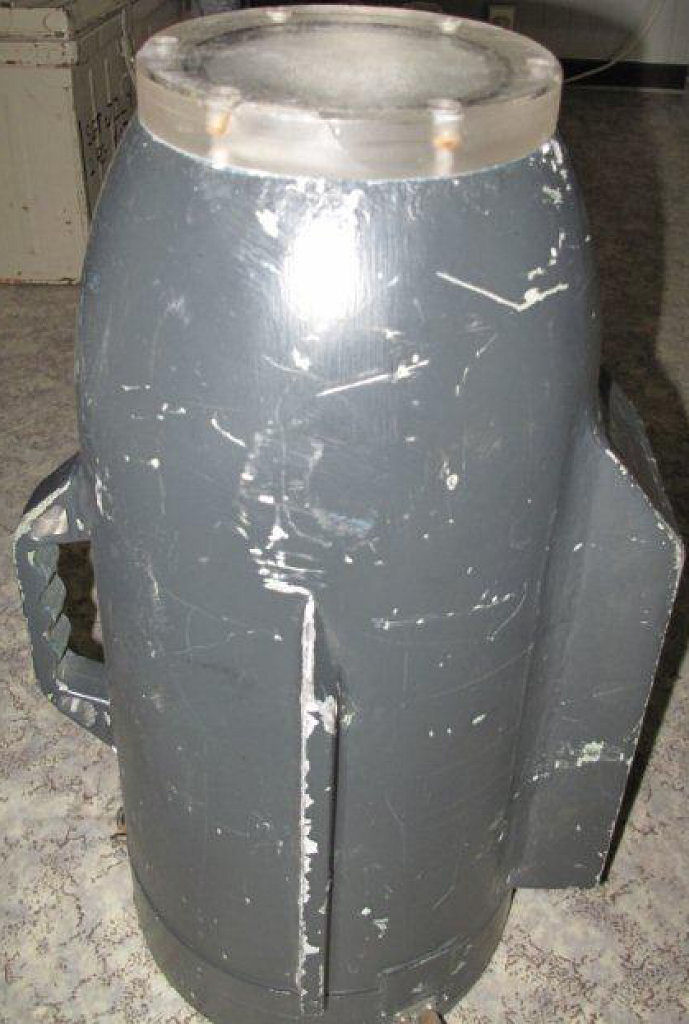

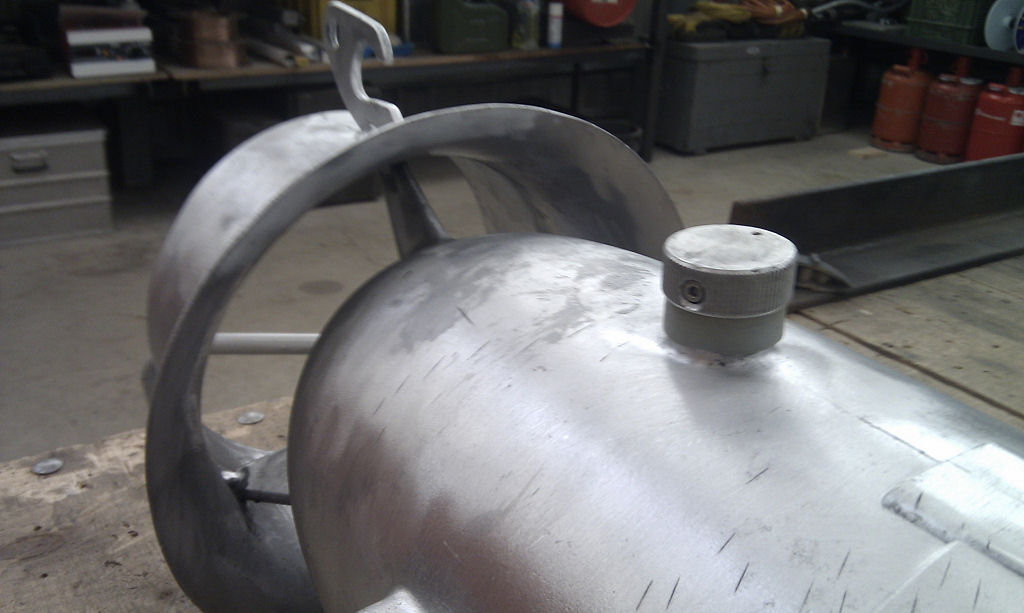

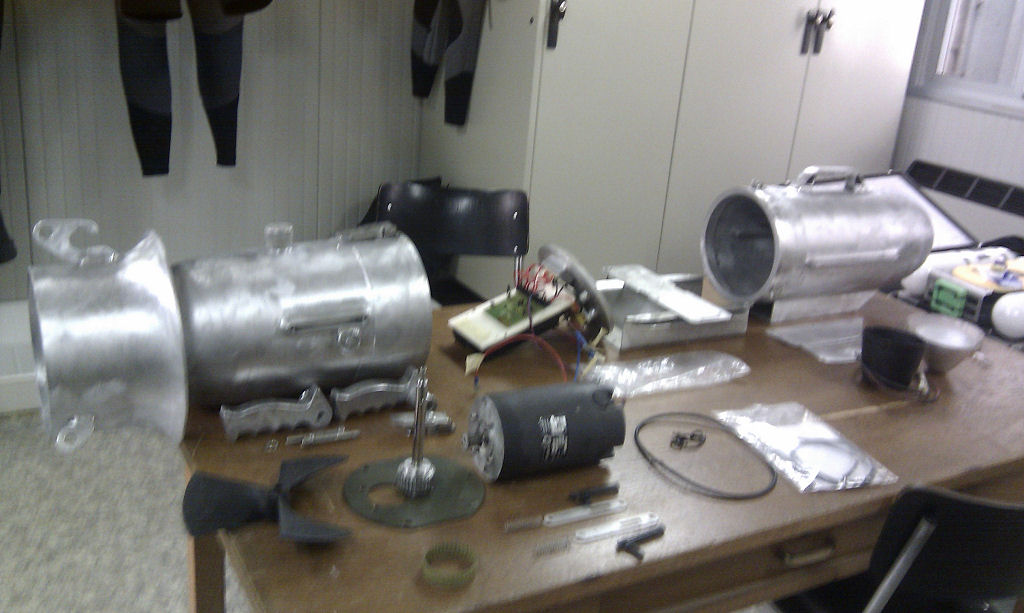

Bernard refurbished the old scooter and gave it new seeling and colour.
 MeScoot_B_002_t.jpg |
 MeScoot_B_003_t.jpg |
 MeScoot_B_004_t.jpg |

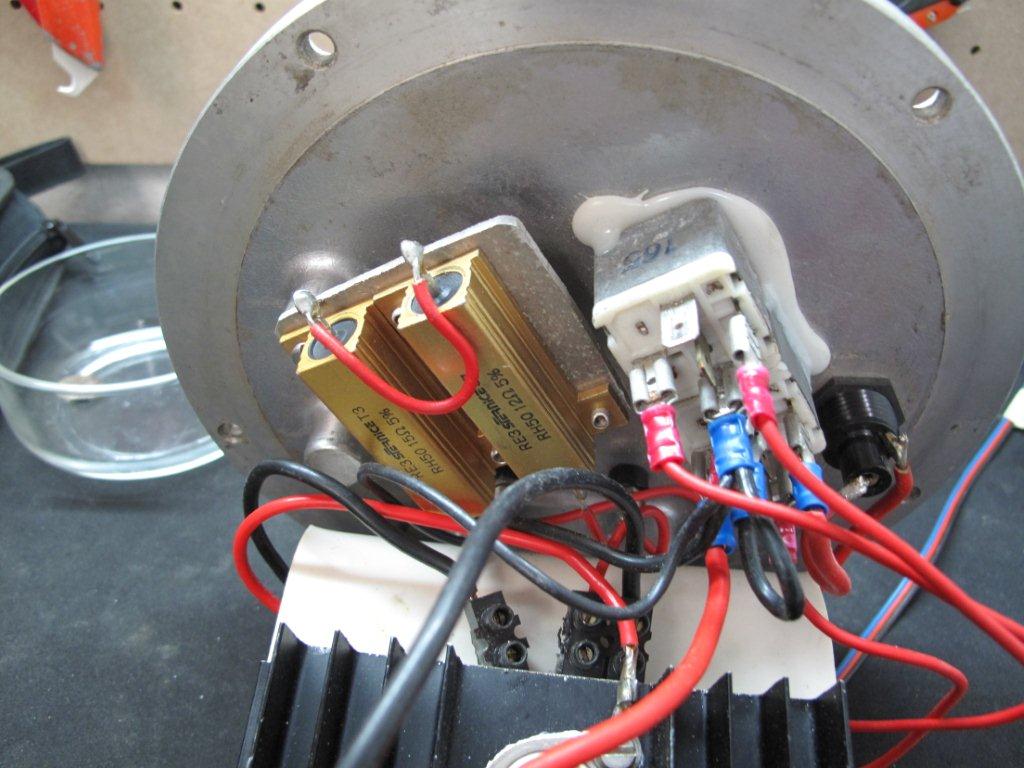

 MeScoot_B_005_t.jpg |
 MeScoot_B_006_t.jpg |
 MeScoot_B_007_t.jpg |
 MeScoot_B_008_t.jpg |
 MeScoot_B_009_t.jpg |

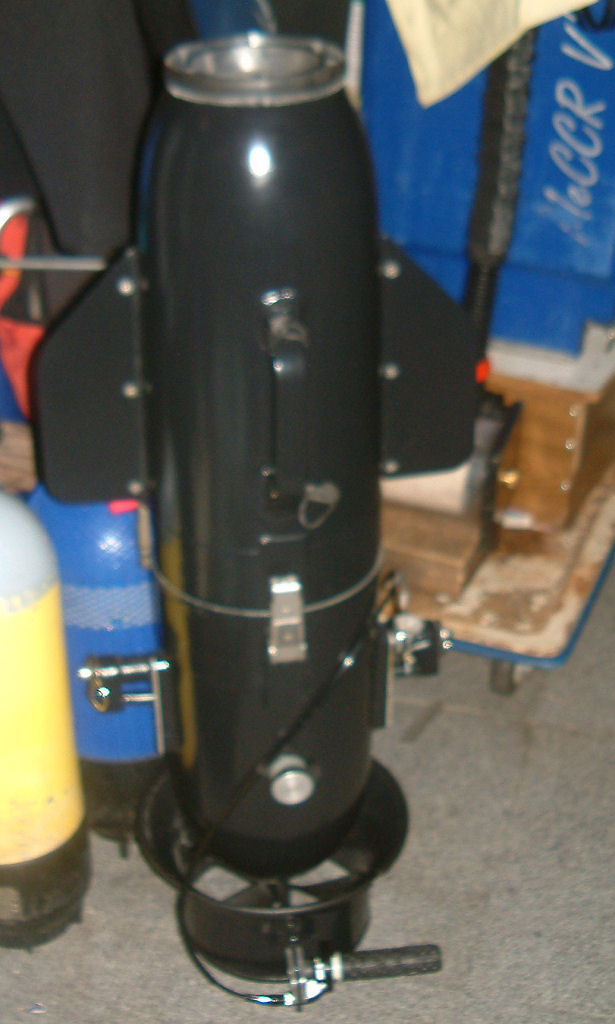

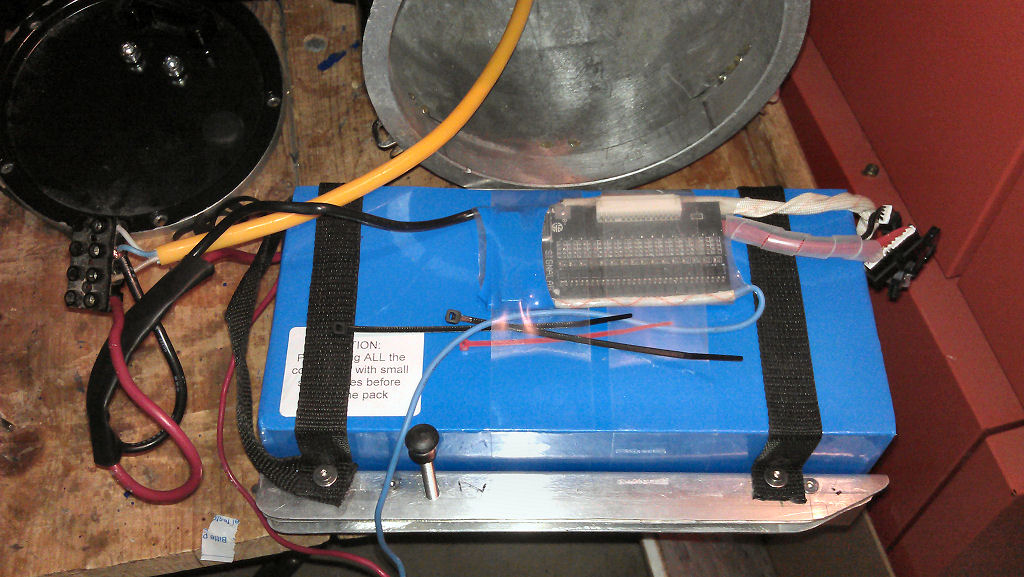

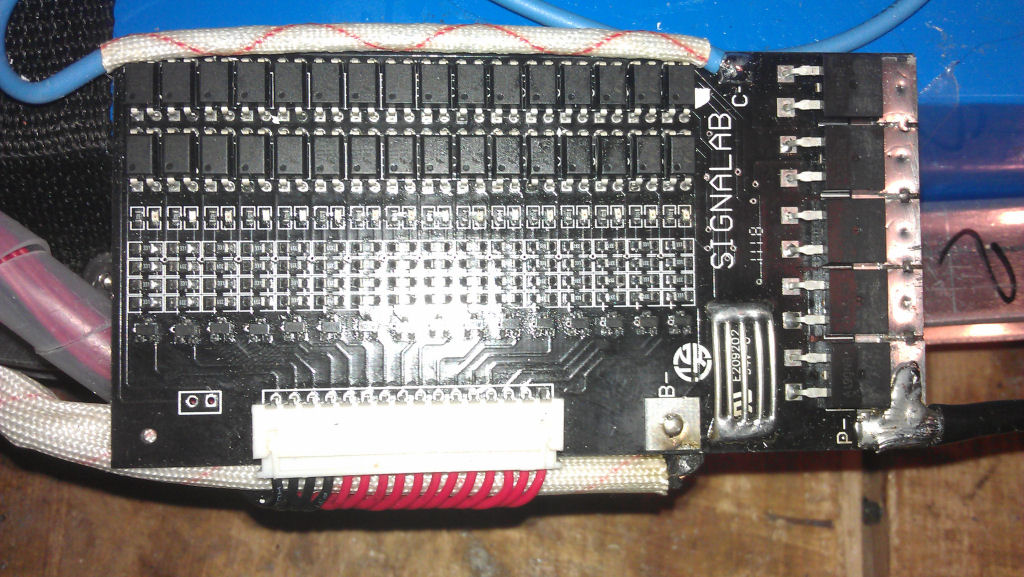

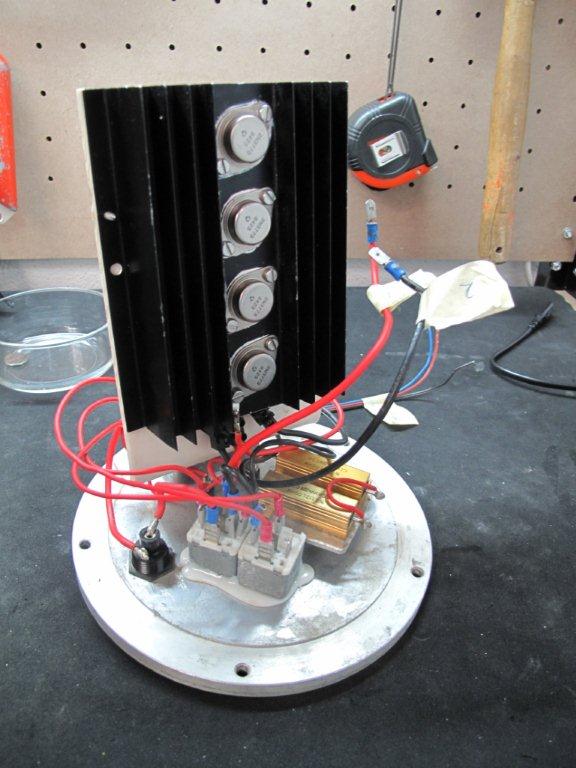

Next giving it a better inside.
 MeScoot_B_010_t.jpg |

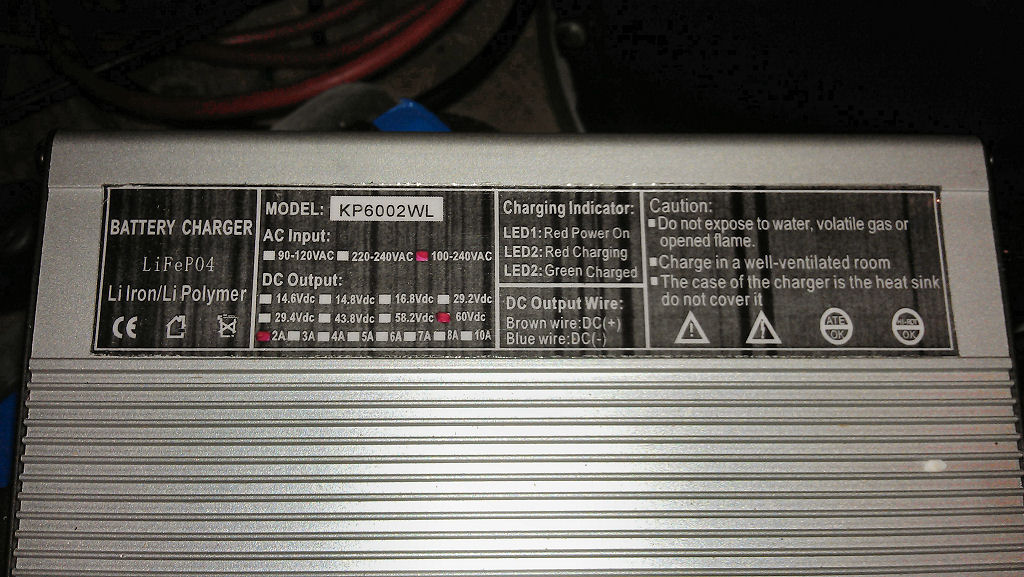

 MeScoot_B_011_t.jpg |
 MeScoot_B_012_t.jpg |

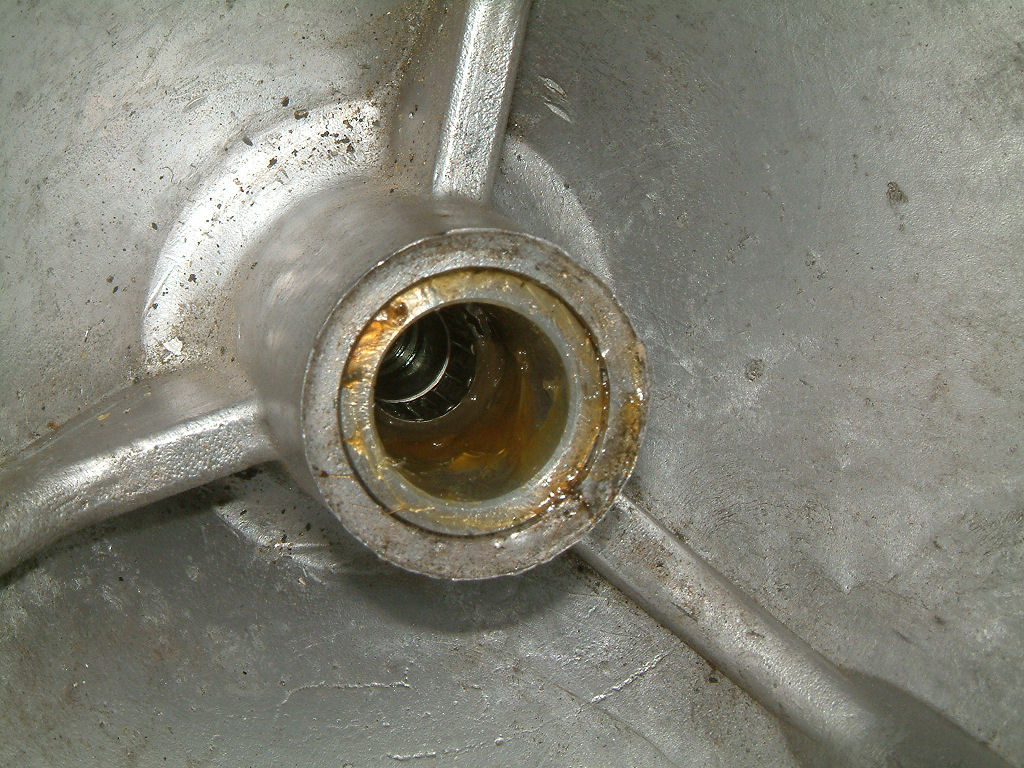

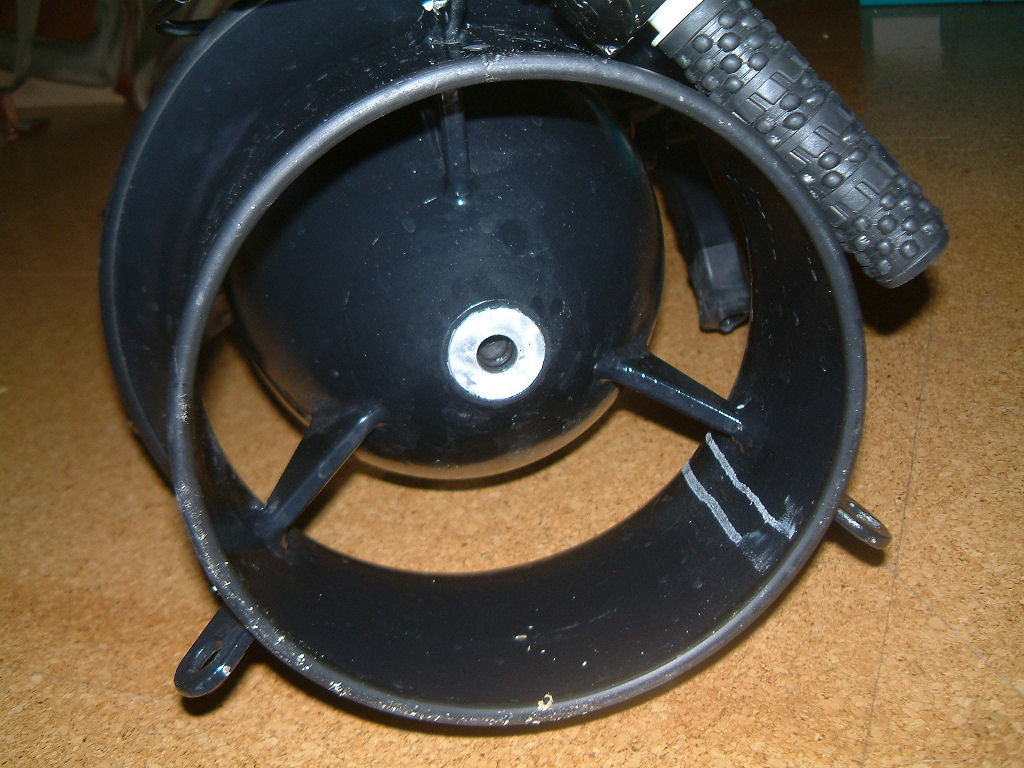

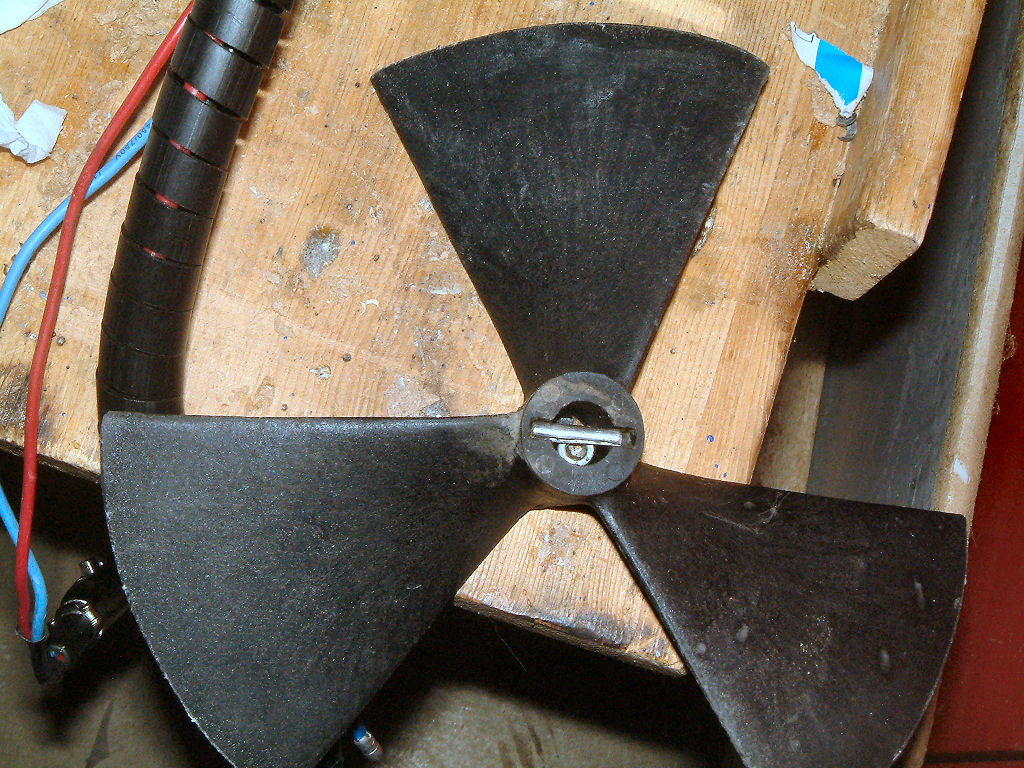

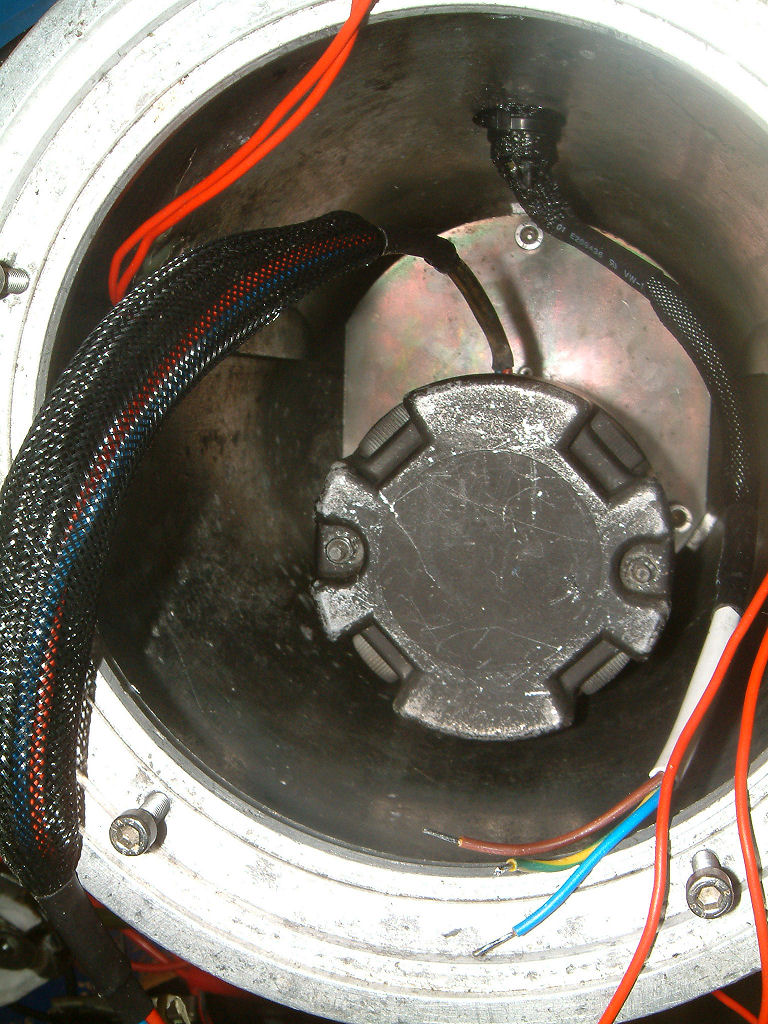

Using the old propulsion chaine.

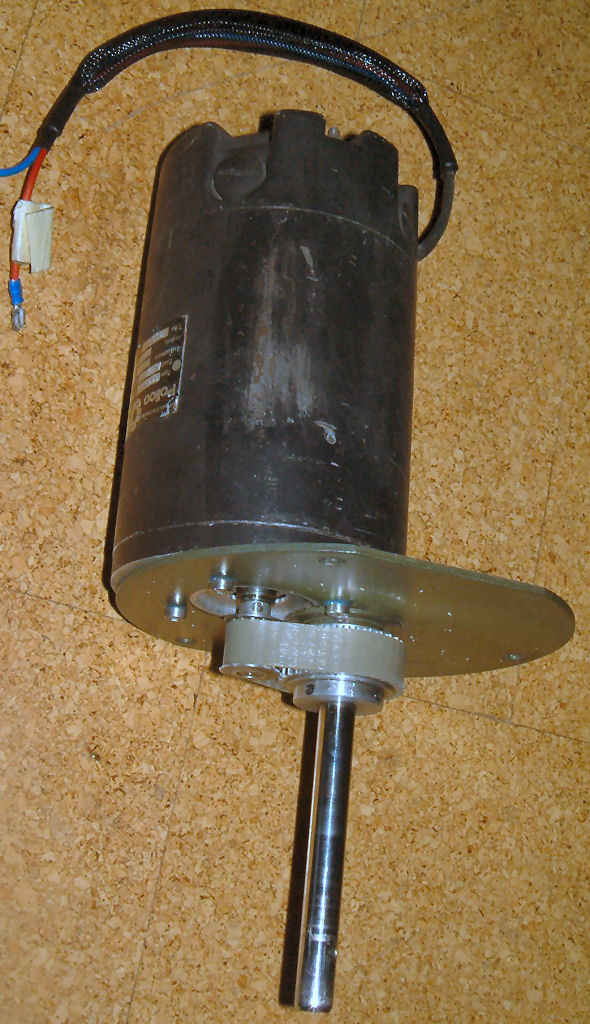

 MeScoot_B_013_t.jpg |
 MeScoot_B_014_t.jpg |
 MeScoot_B_015_t.jpg |
 MeScoot_B_016_t.jpg |
 MeScoot_B_017_t.jpg |
 MeScoot_B_018_t.jpg |

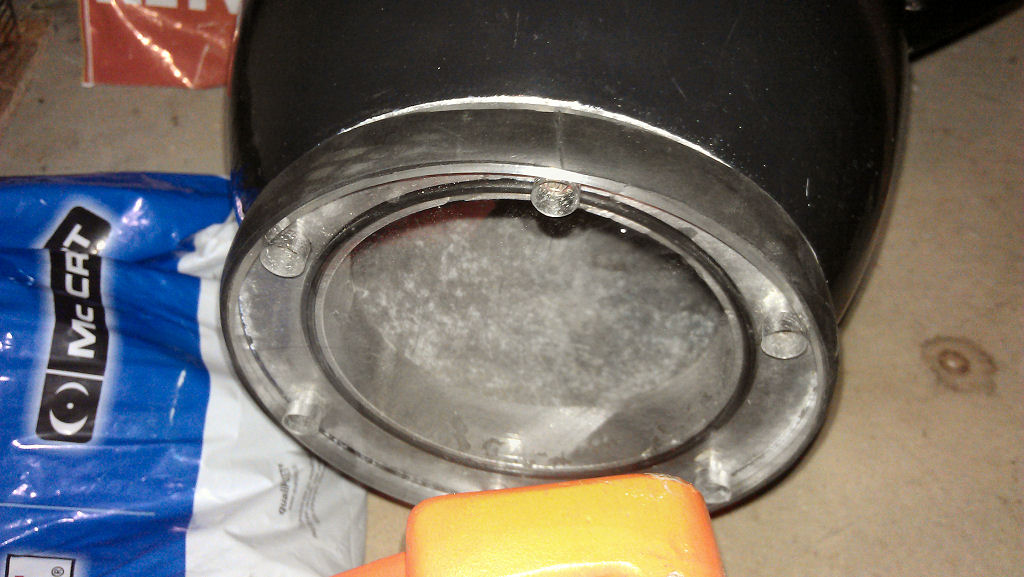

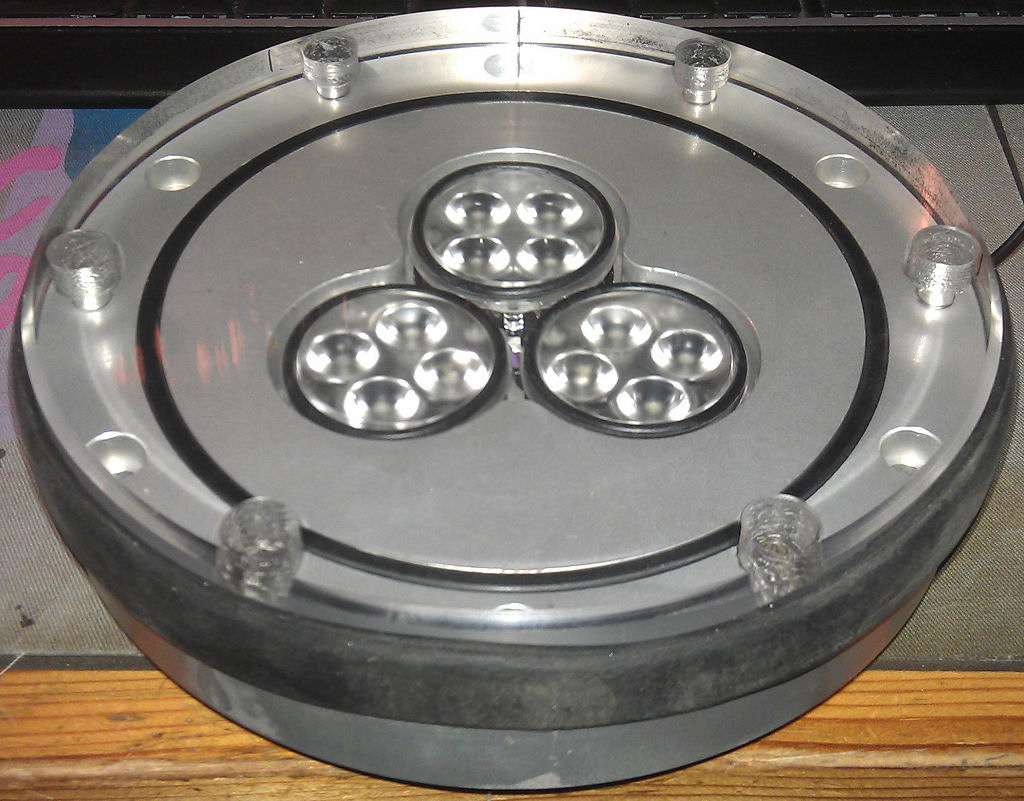

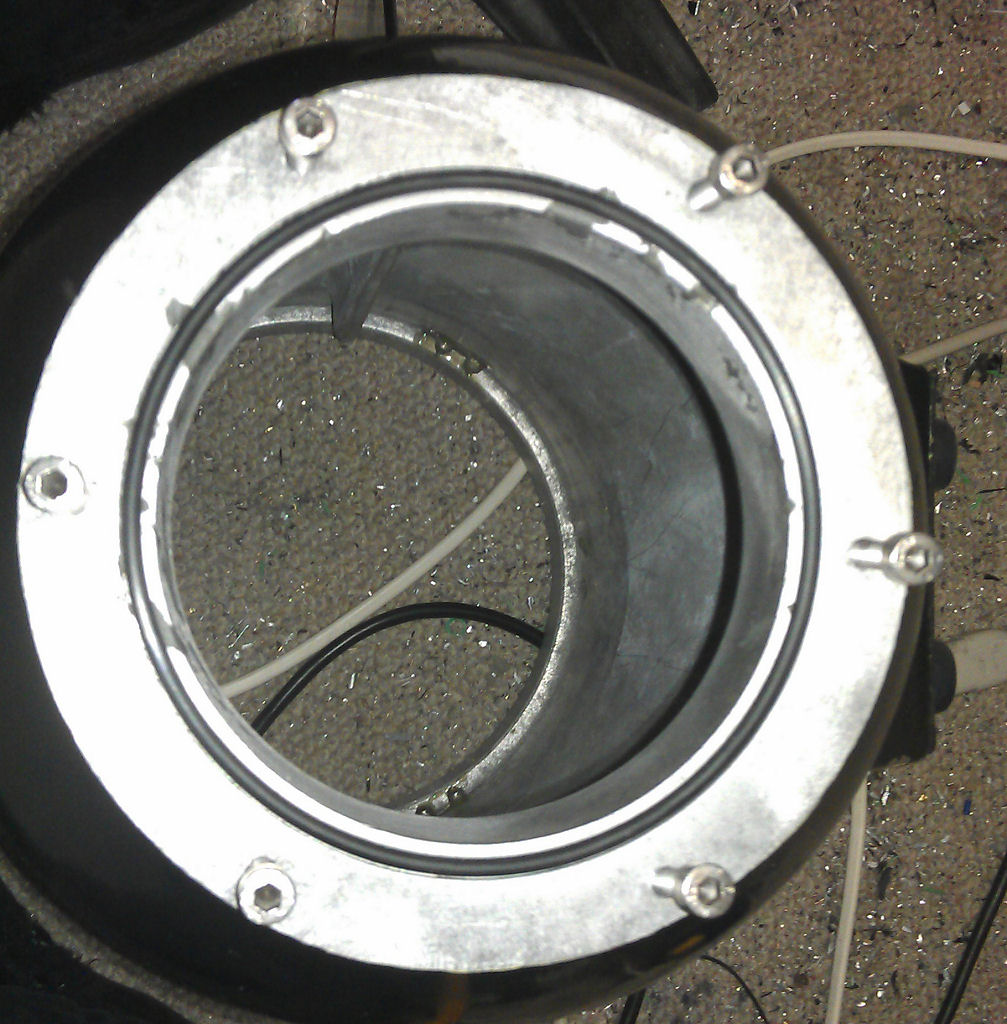

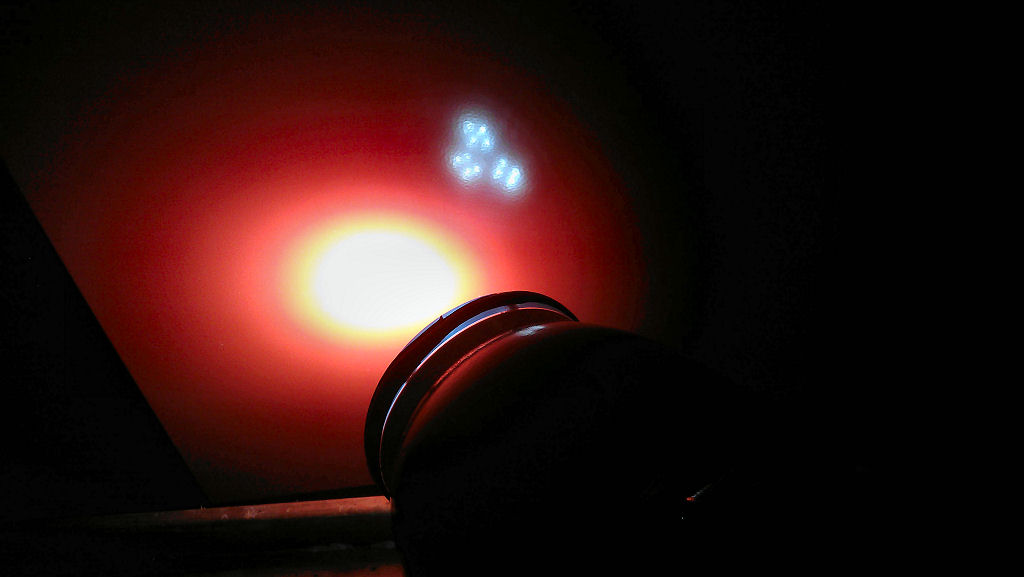

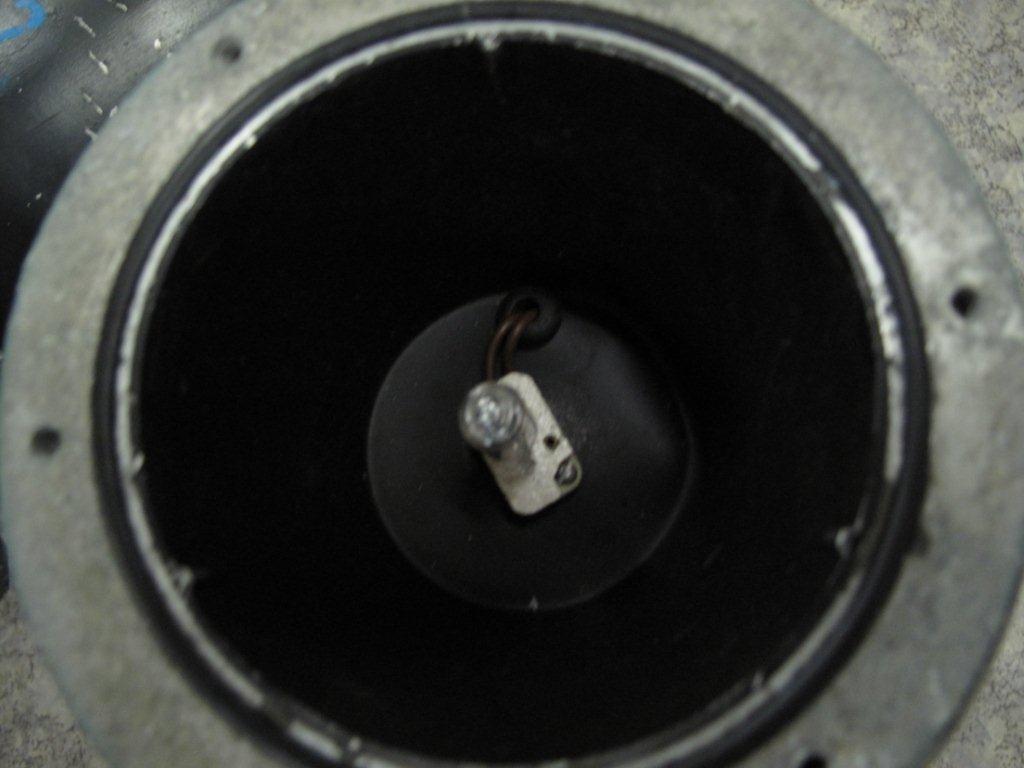

Than excange the halogen against modern LED design.
 MeScoot_B_019_t.jpg |
 MeScoot_B_020_t.jpg |
 MeScoot_B_021_t.jpg |
 MeScoot_B_022_t.jpg |
 MeScoot_B_023_t.jpg |
 MeScoot_B_024_t.jpg |
 MeScoot_B_025_t.jpg |

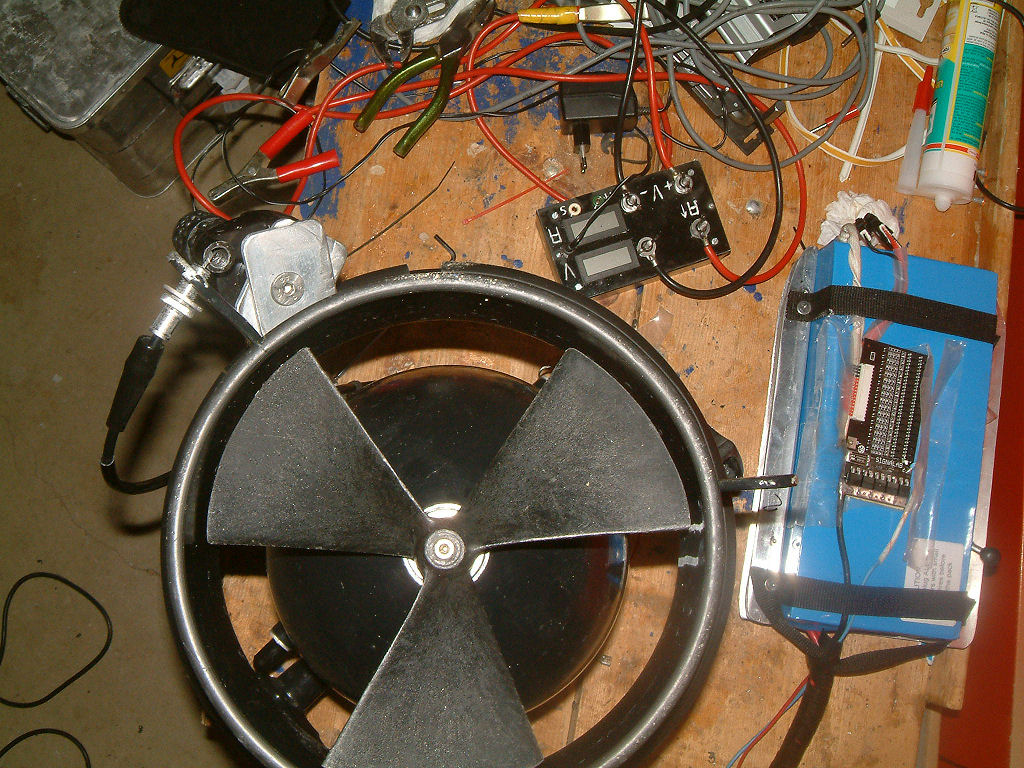

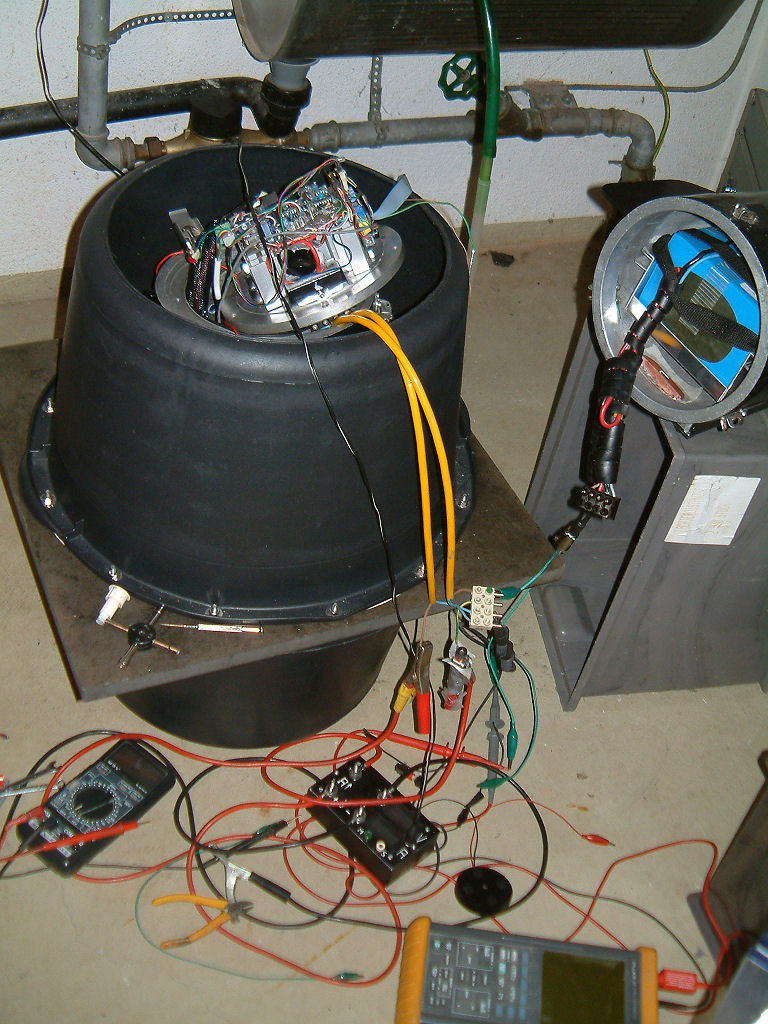

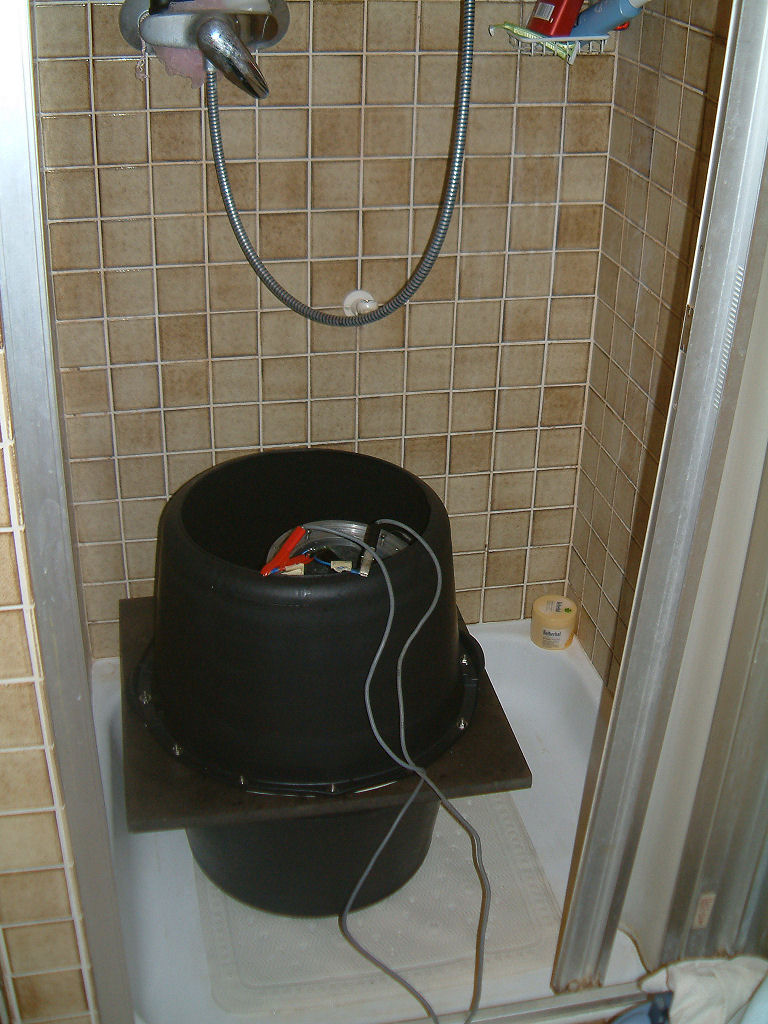

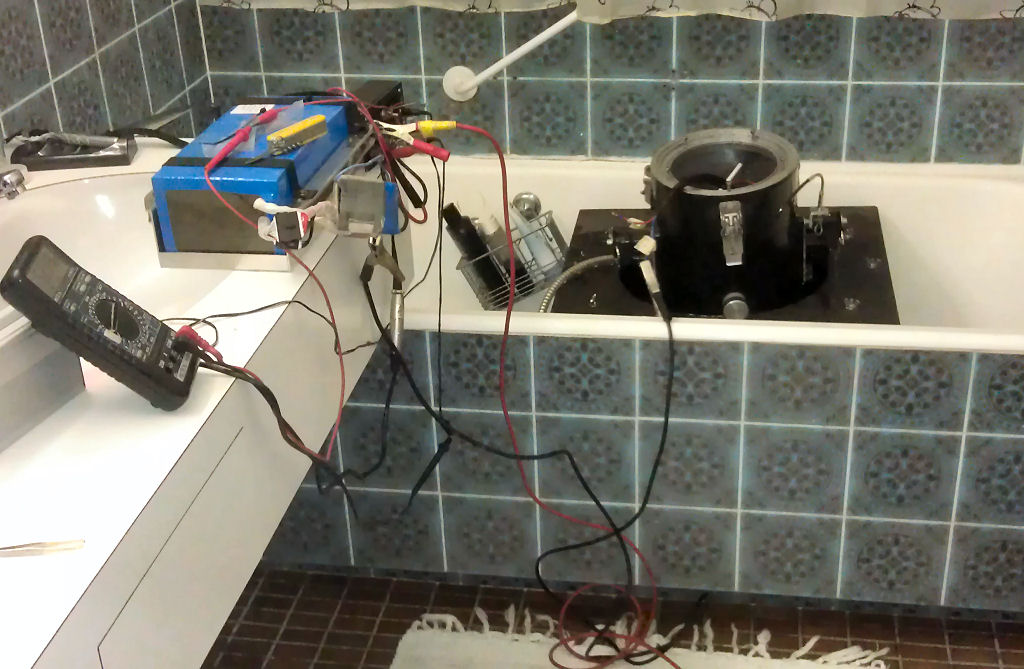

Next I needed was a device to test the propulsion chain with real burden.
 MeScoot_B_026_t.jpg |

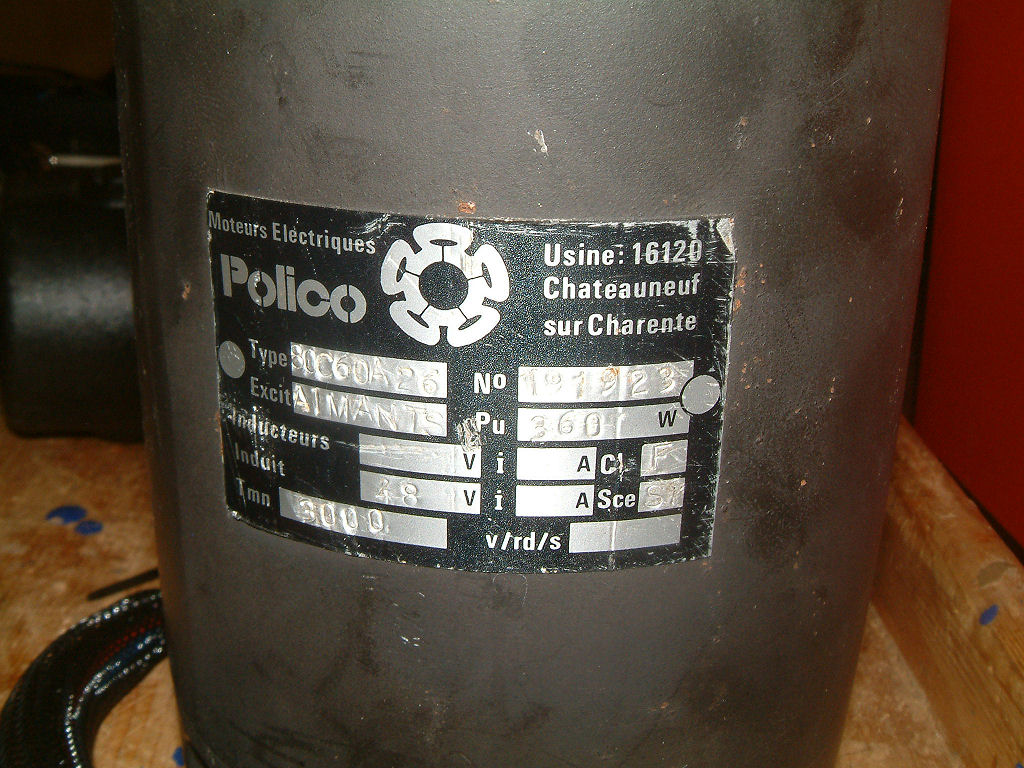

According to the motor plate I expected ca. 300 Watt power consumption. I meassured more than 1500 Watt !!
As result the motor shaft broke after 5 minutes while doing a temperature load test. Sh..t

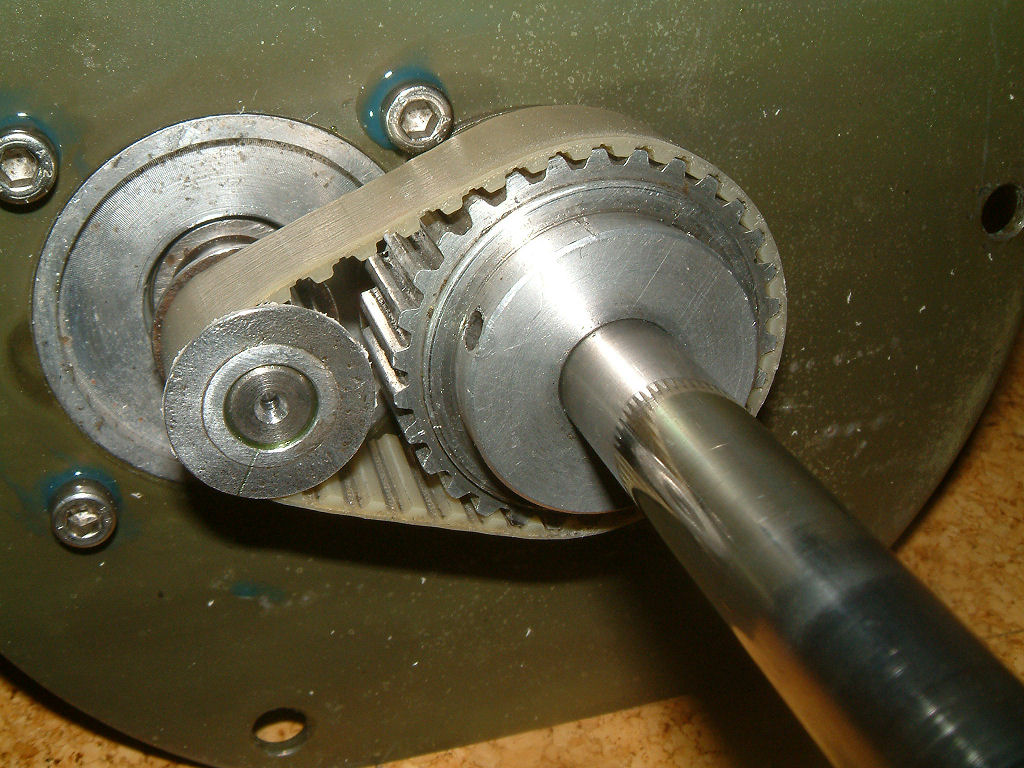

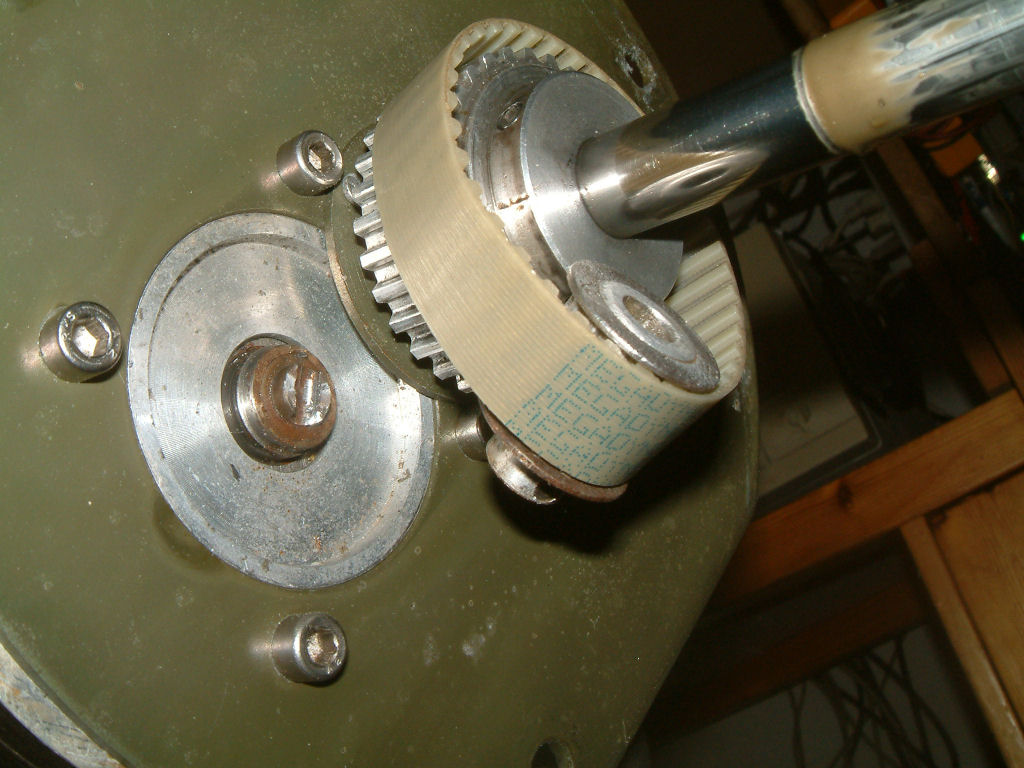

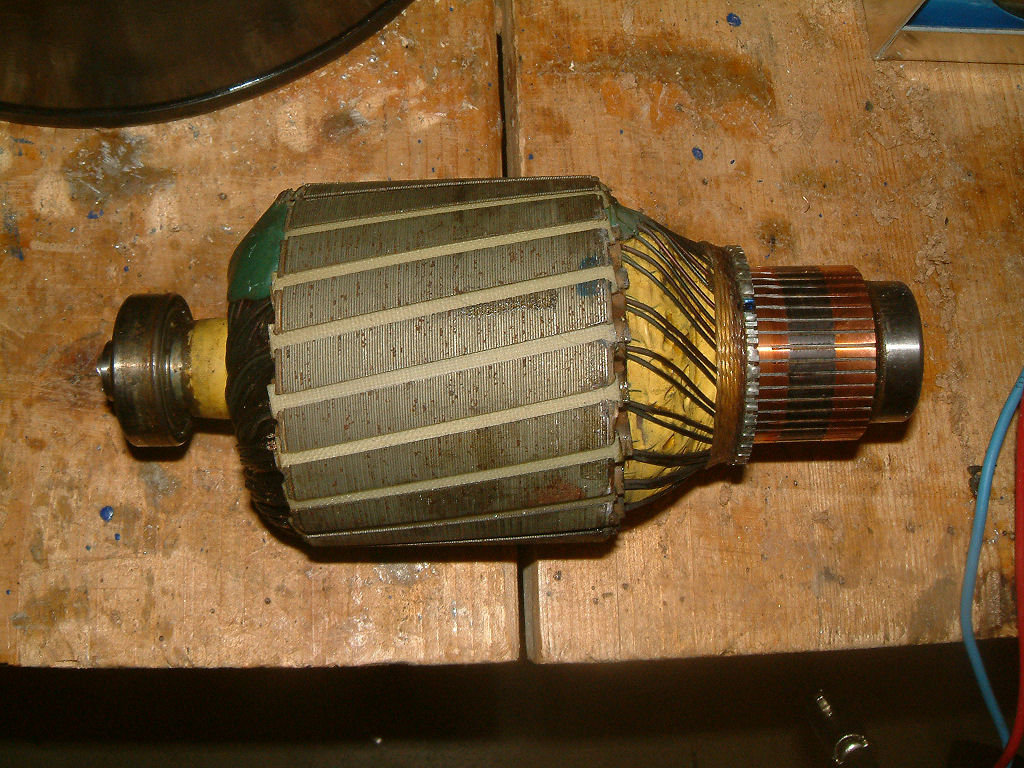

The shaft was repaired by a friend of mine, a real magician. New shaft has 10 instead of 7 mm diameter.

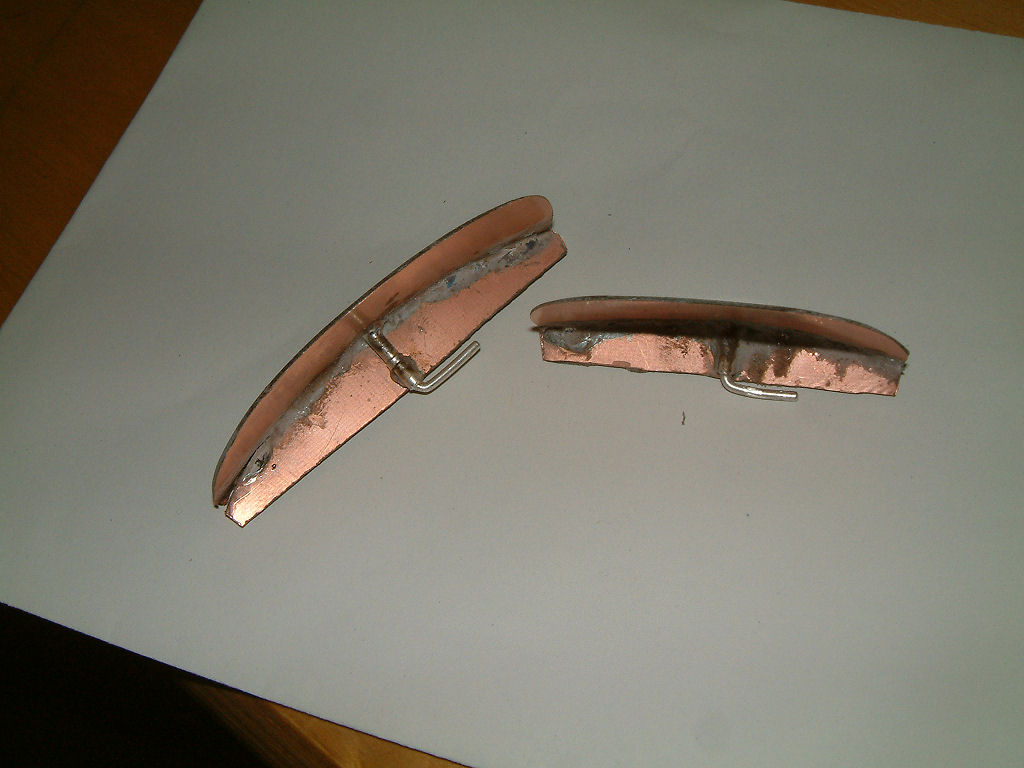

 MeScoot_B_027_t.jpg |
 MeScoot_B_028_t.jpg |
 MeScoot_B_029_t.jpg |

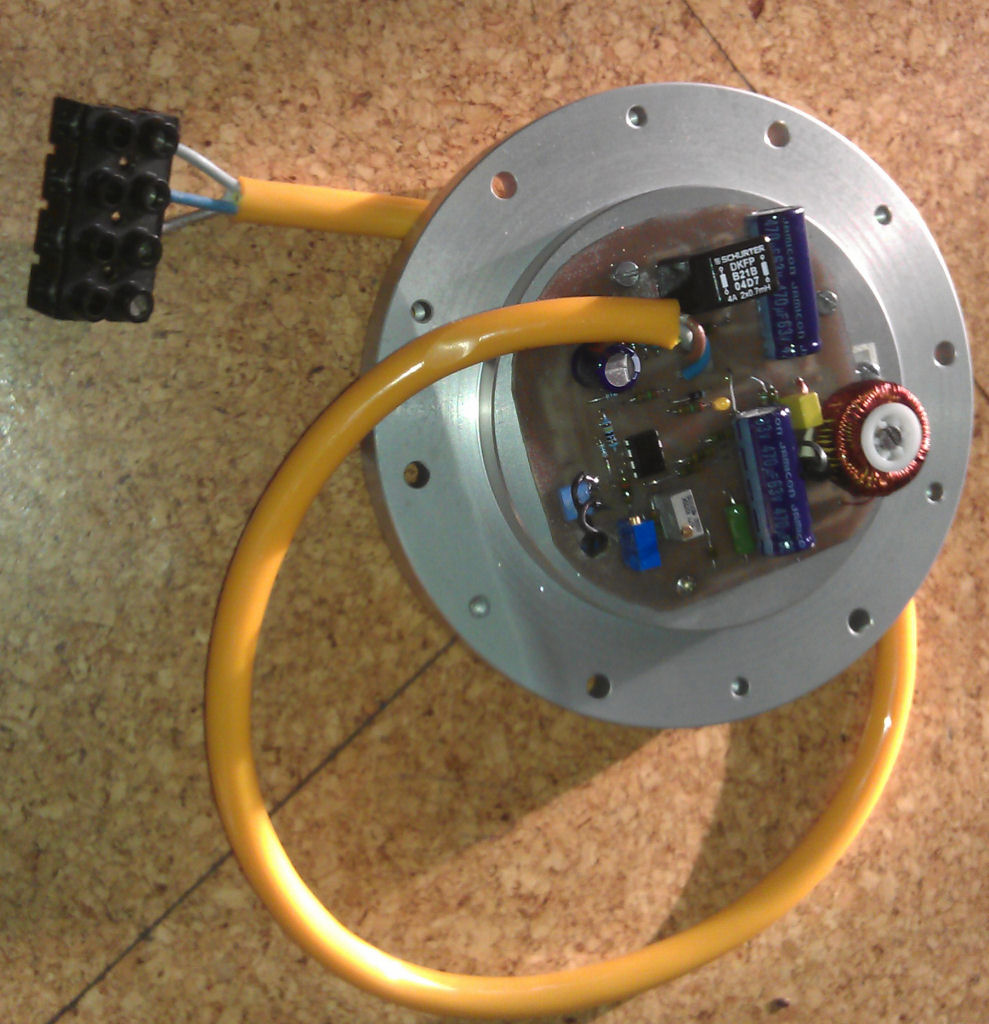

Additionally I changed electronics design. Now the motor is current regulated and that way restricted to max 1000 Watts.
 MeScoot_B_030_t.jpg |
 MeScoot_B_031_t.jpg |
 MeScoot_B_032_t.jpg |
 MeScoot_B_033_t.jpg |

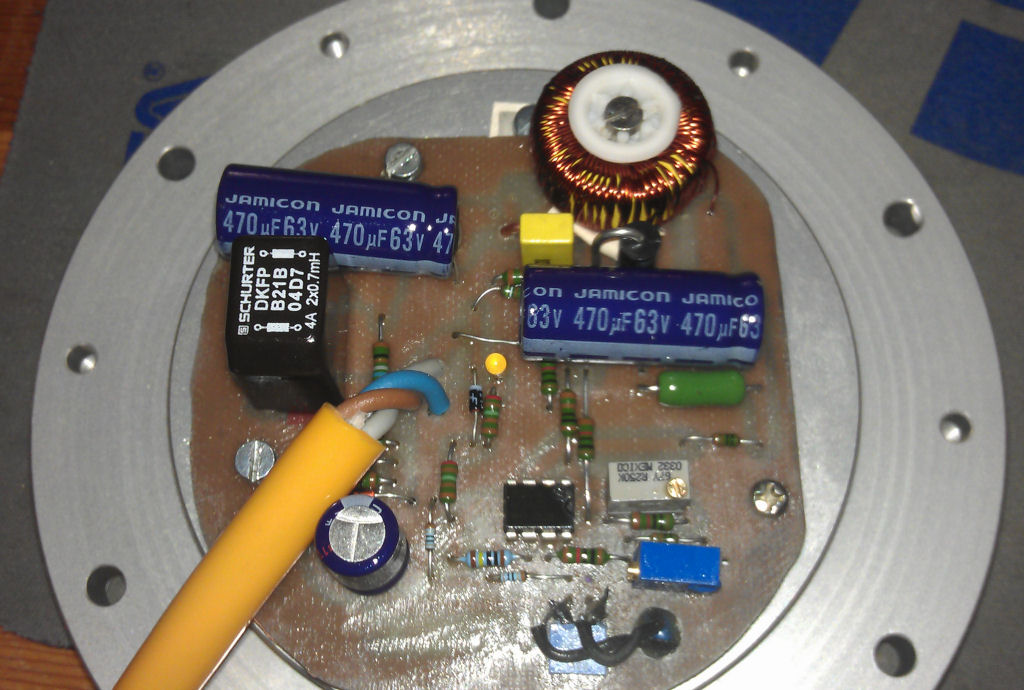

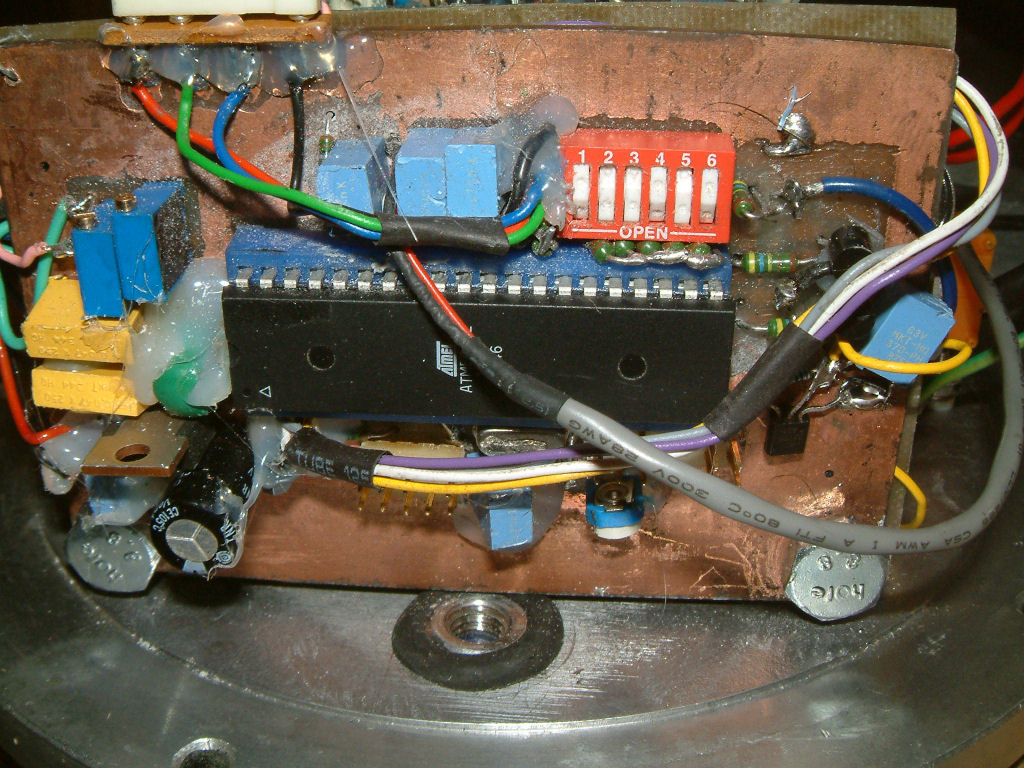

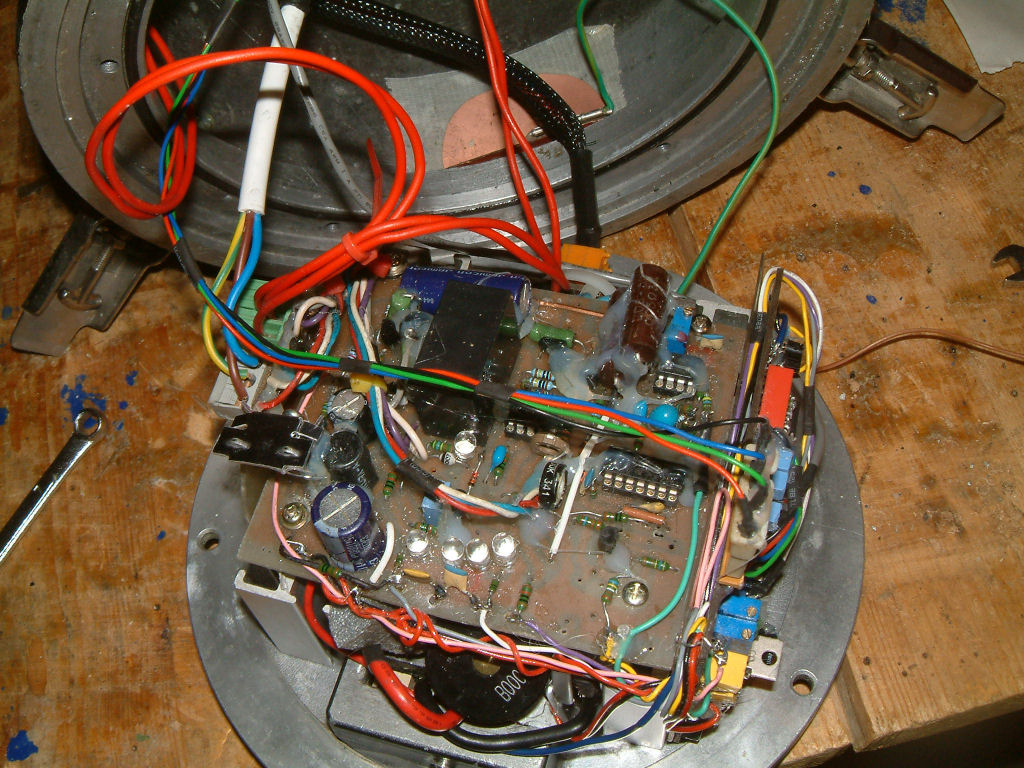

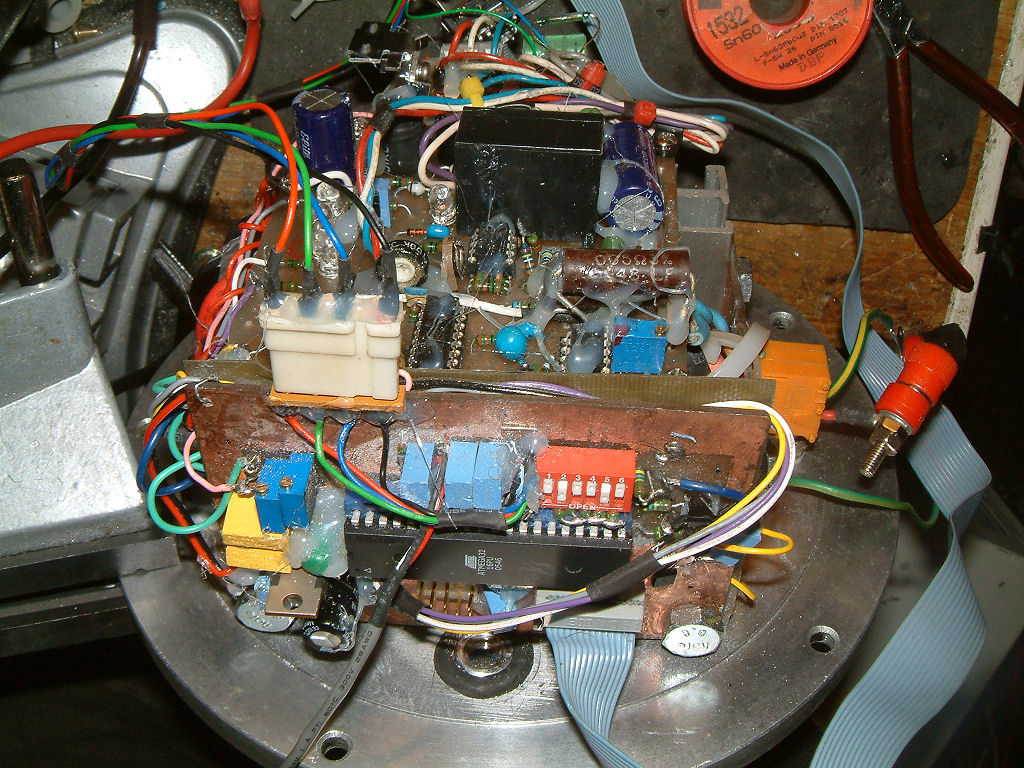

The electronic is controlled by a Atmel ATMEGA32. That way all kind of behaviour is modifiable later on. ( see handbook MeScoot B Handbook.pdf )
 MeScoot_B_034_t.jpg |
 MeScoot_B_035_t.jpg |
 MeScoot_B_036_t.jpg |

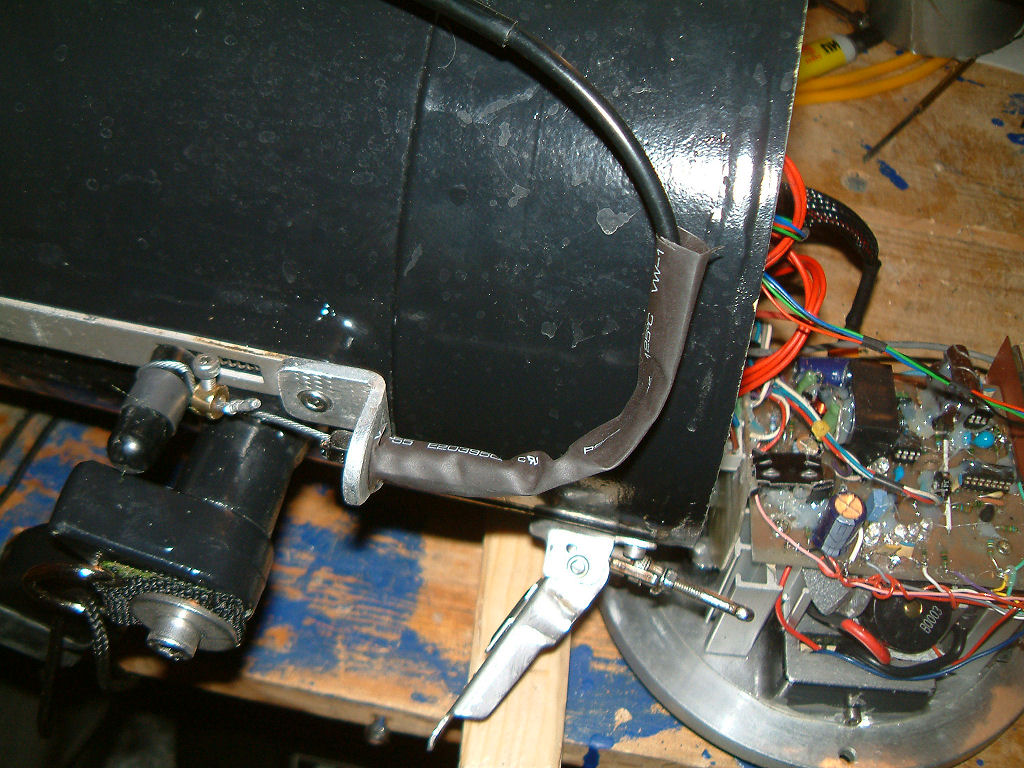

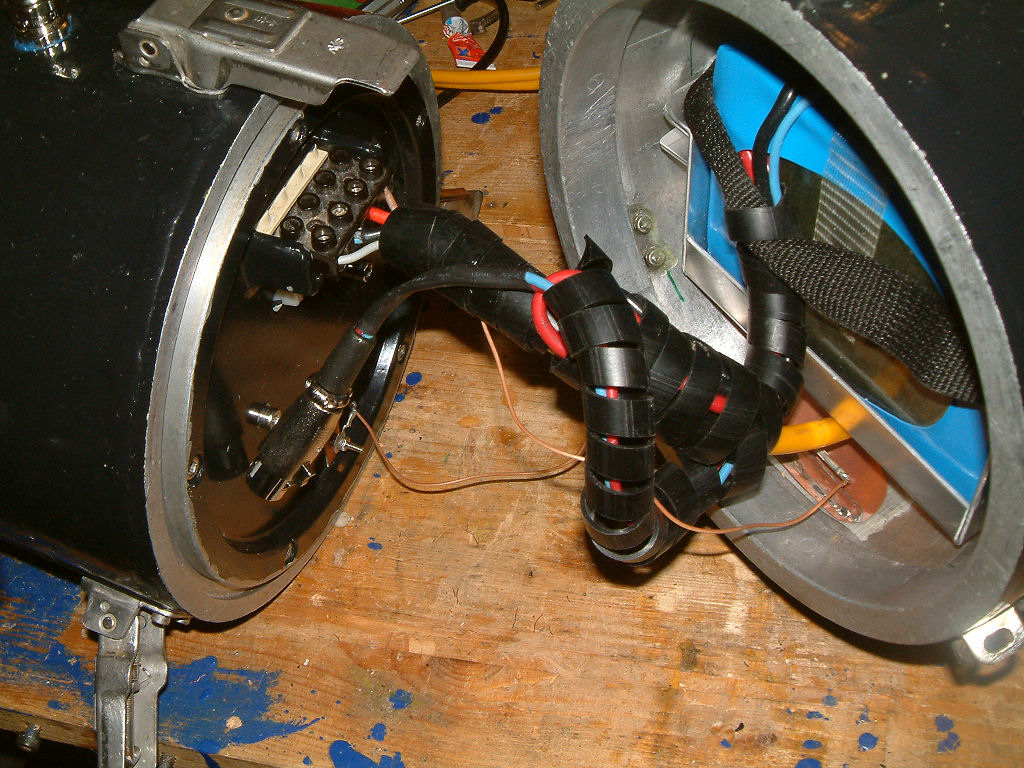

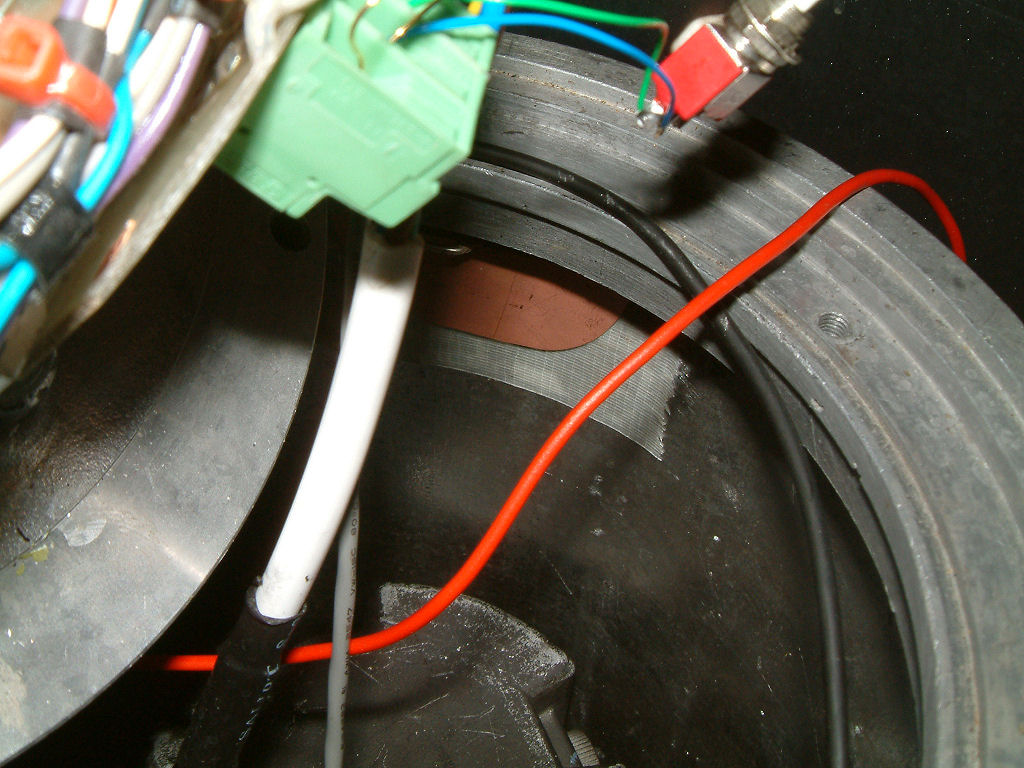

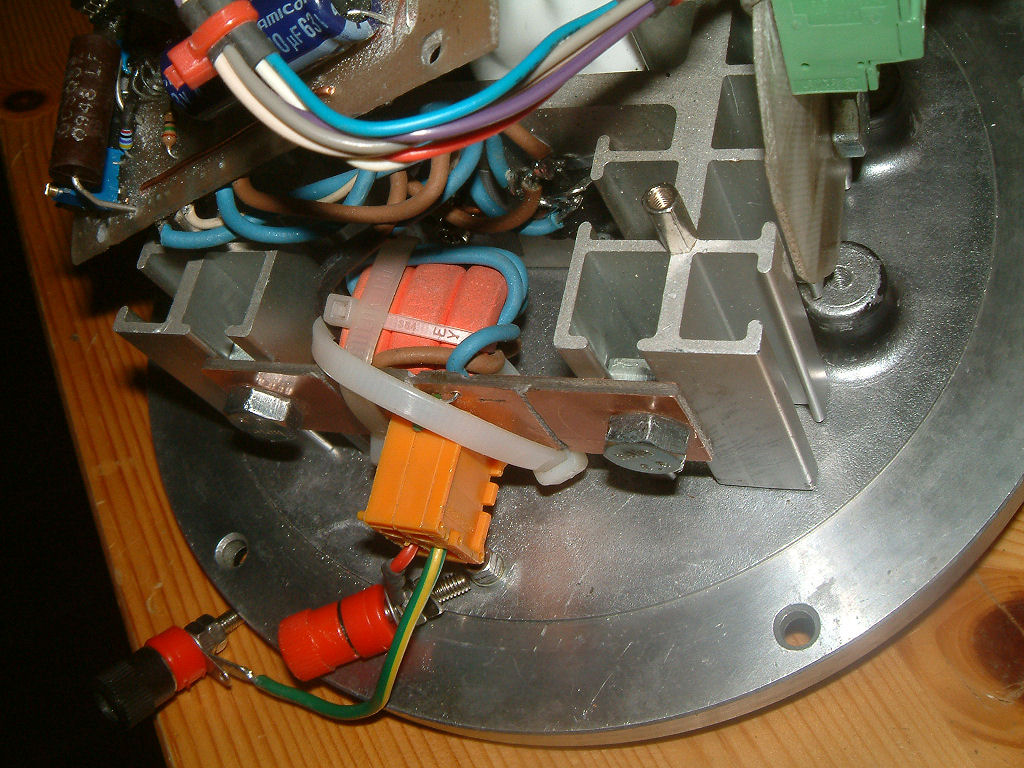

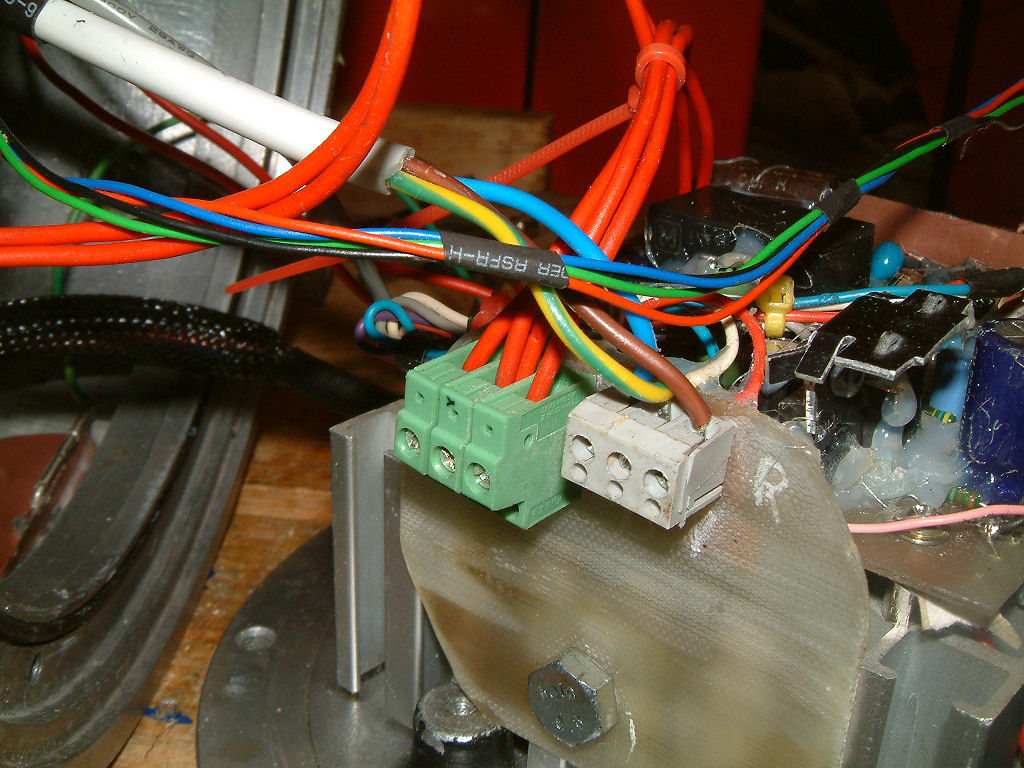

Cables are connected for easy dismounting and service.
 MeScoot_B_037_t.jpg |
 MeScoot_B_038_t.jpg |
 MeScoot_B_039_t.jpg |

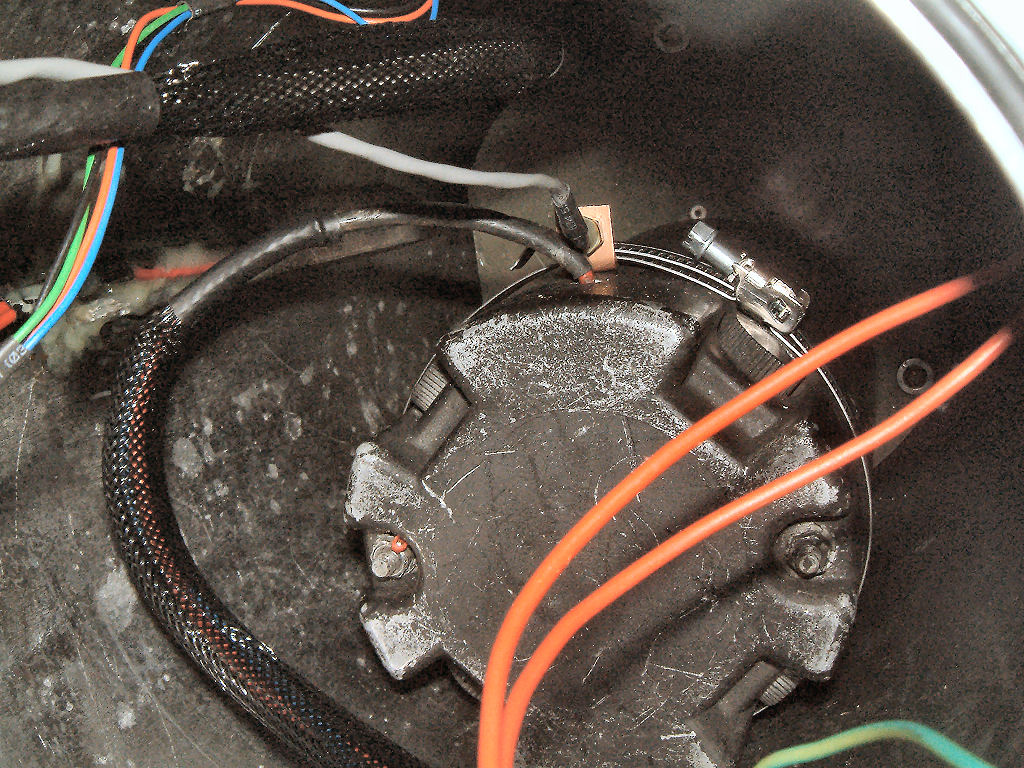

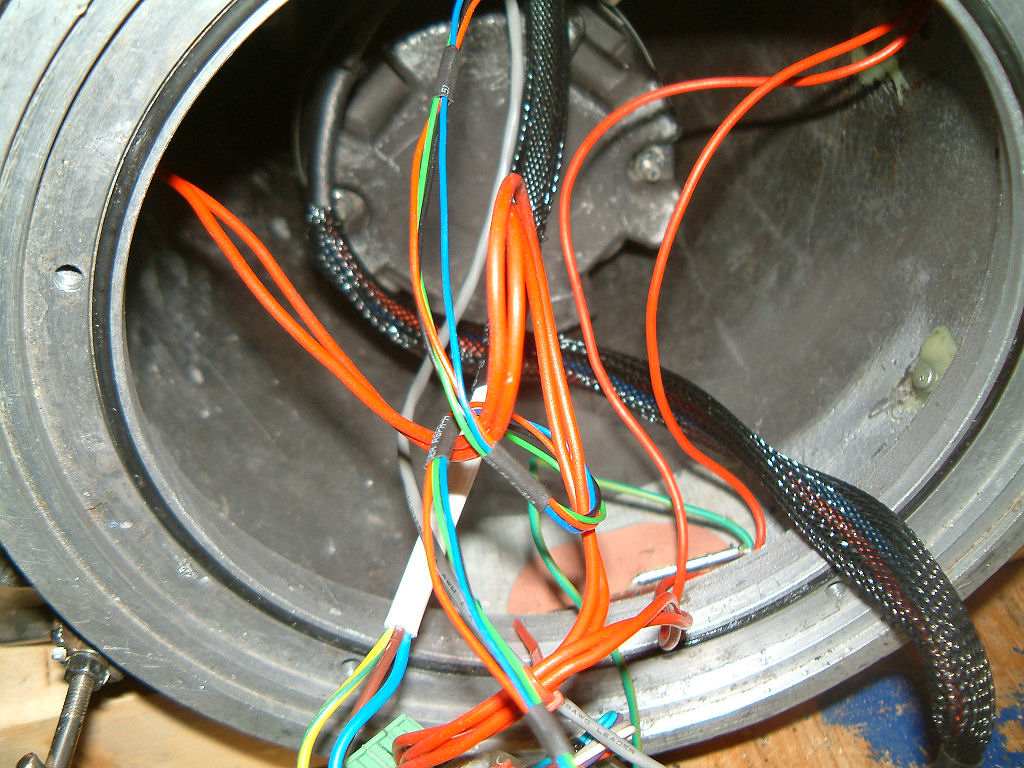

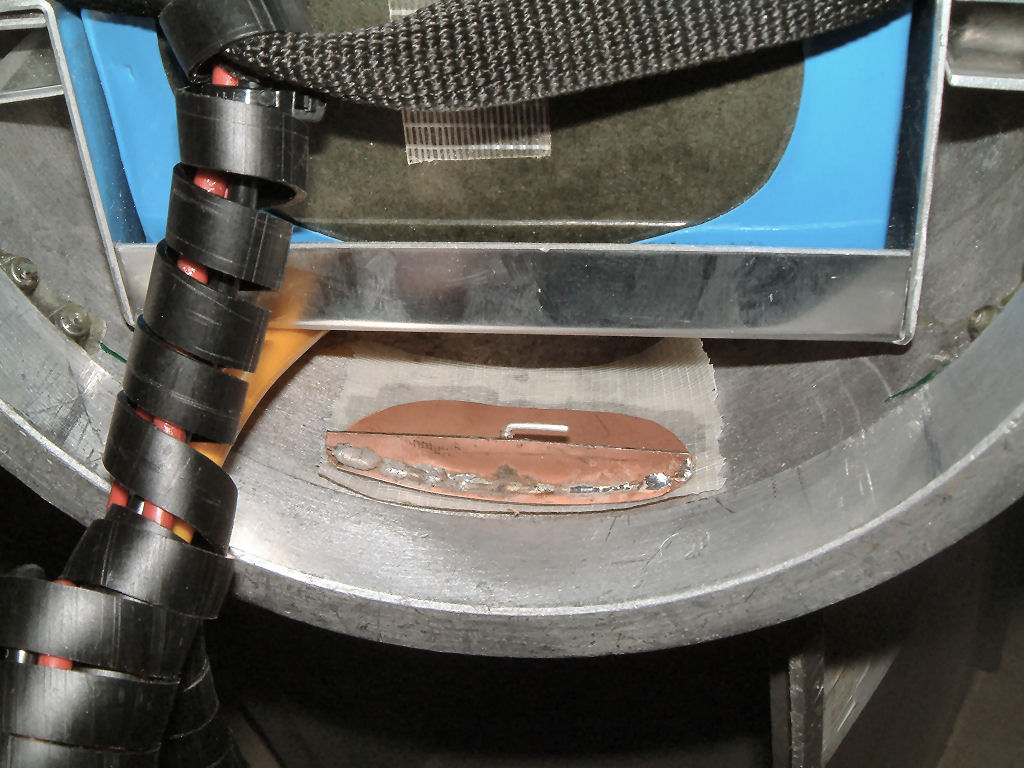

The device has a motor temperature control and also a water intrusion detection
 MeScoot_B_040_t.jpg |
 MeScoot_B_041_t.jpg |
 MeScoot_B_042_t.jpg |
 MeScoot_B_043_t.jpg |

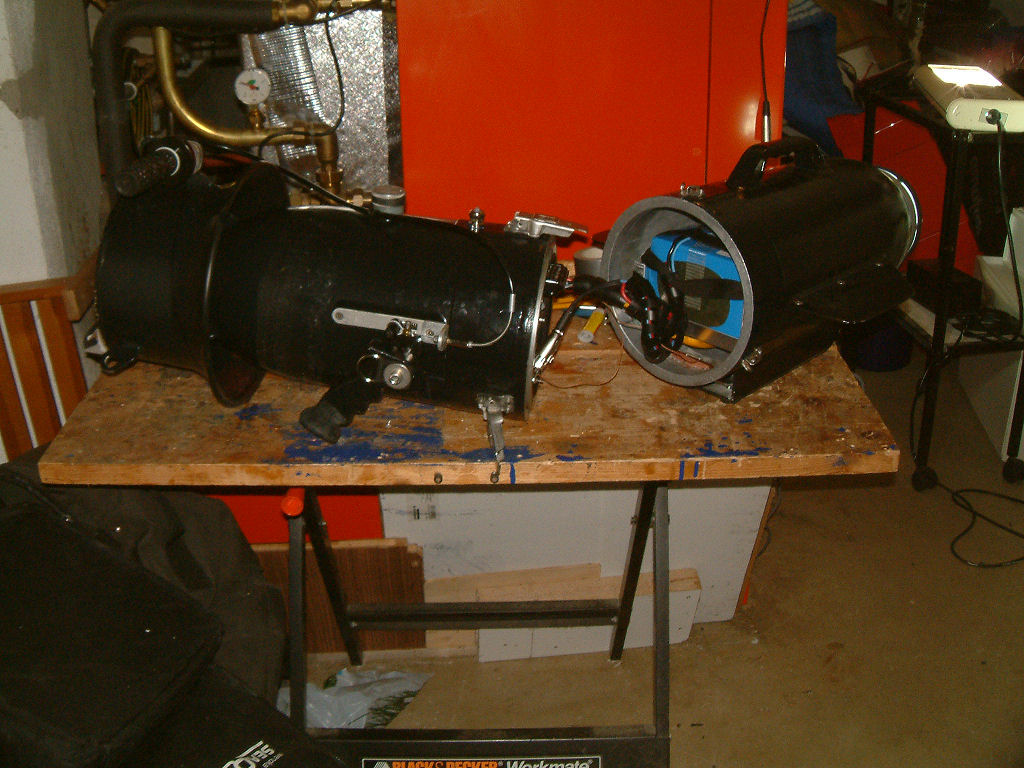

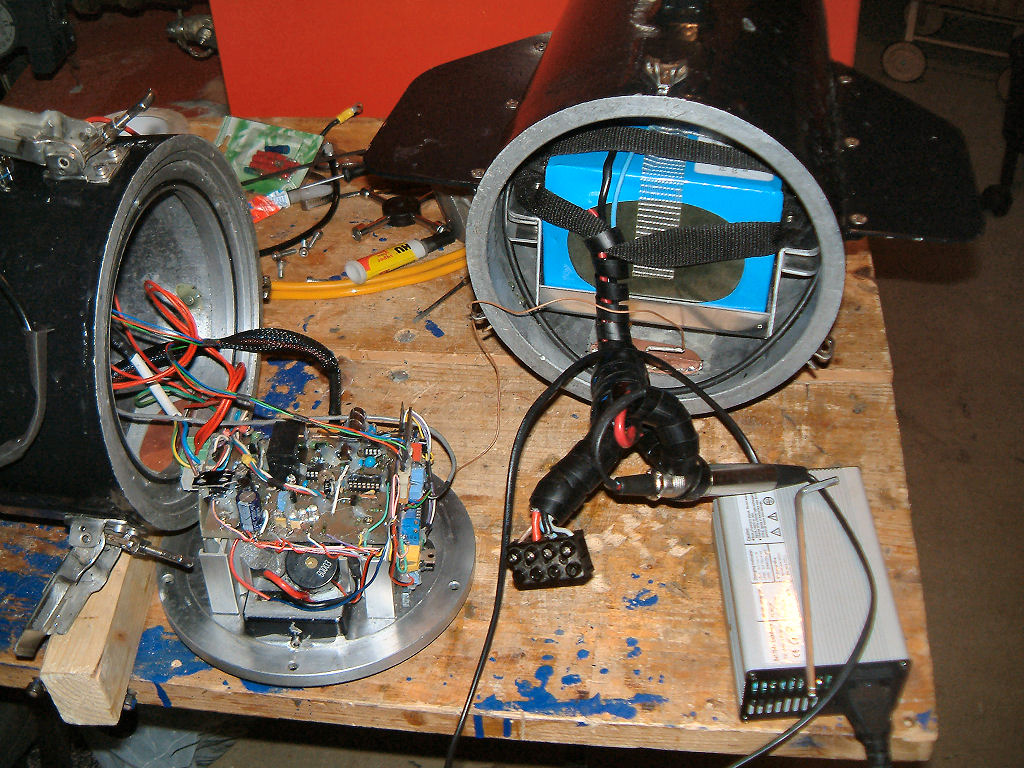

Here the finished device. It opens in the middle. On the right side contains battery and led.

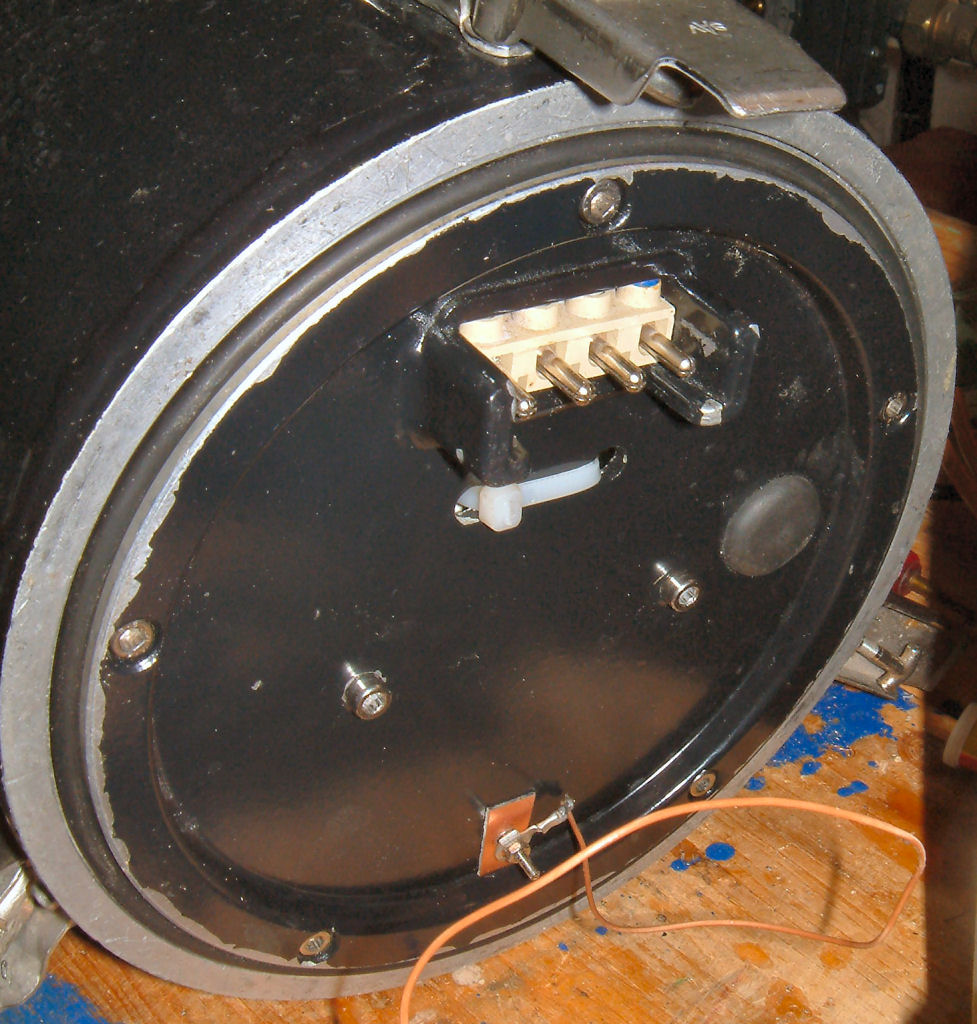

The left side motor and most of the electronics. Motor side is closed by a sealed plate. Easy connect by one plug.
 MeScoot_B_044_t.jpg |
 MeScoot_B_045_t.jpg |
 MeScoot_B_046_t.jpg |
 MeScoot_B_047_t.jpg |
 MeScoot_B_048_t.jpg |
 MeScoot_B_049_t.jpg |

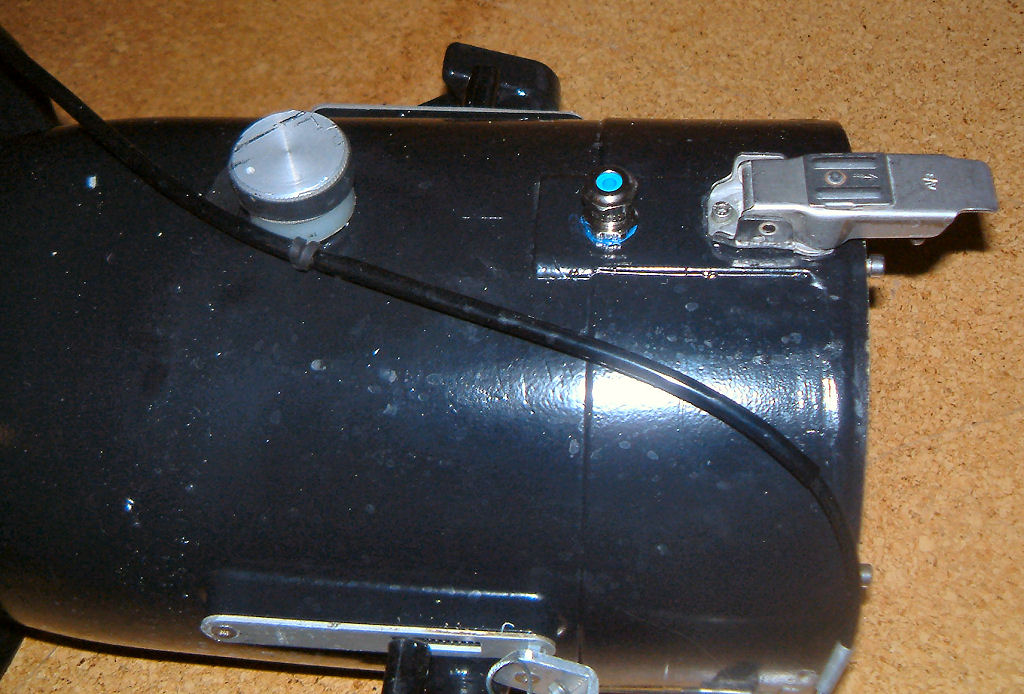

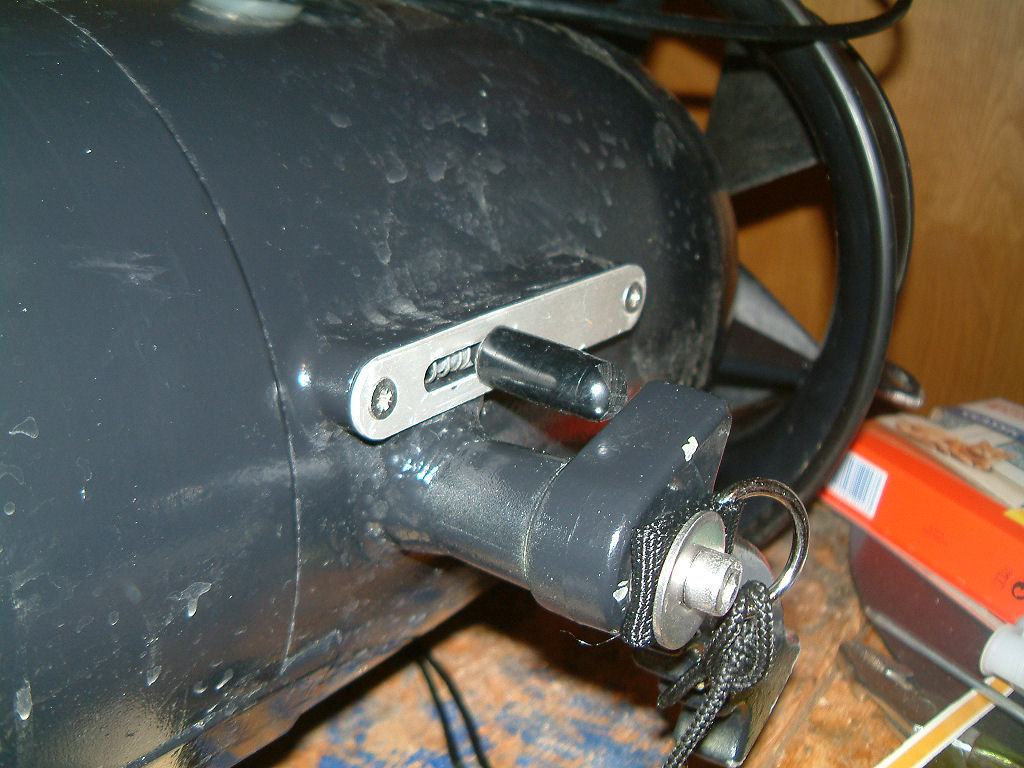

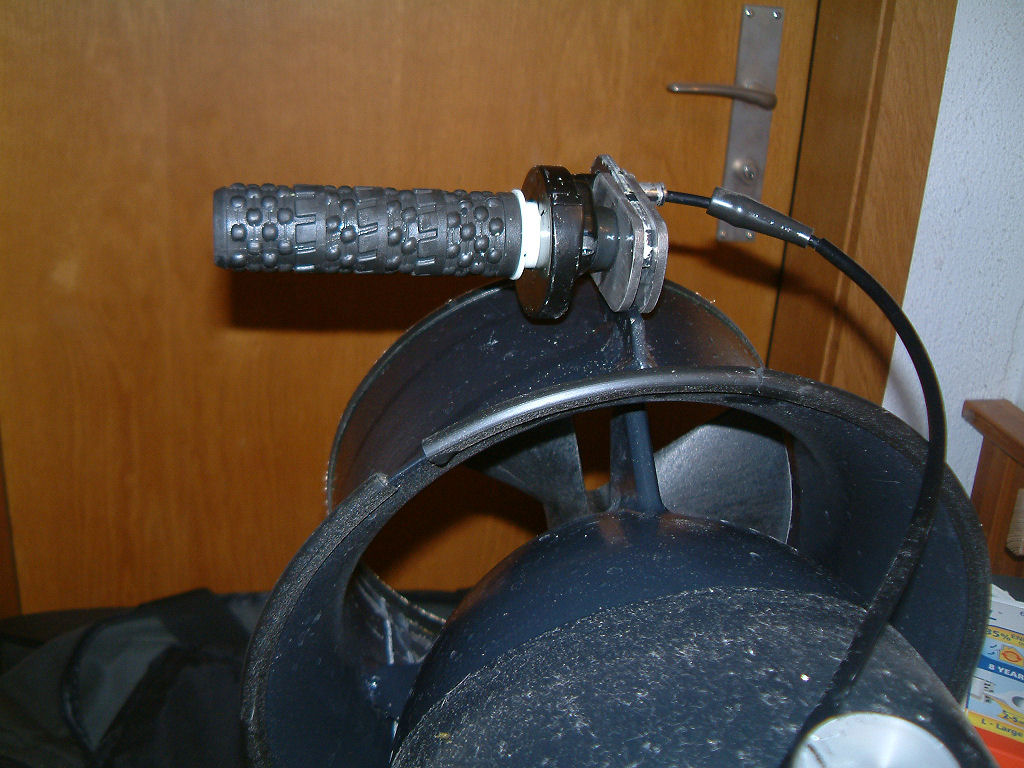

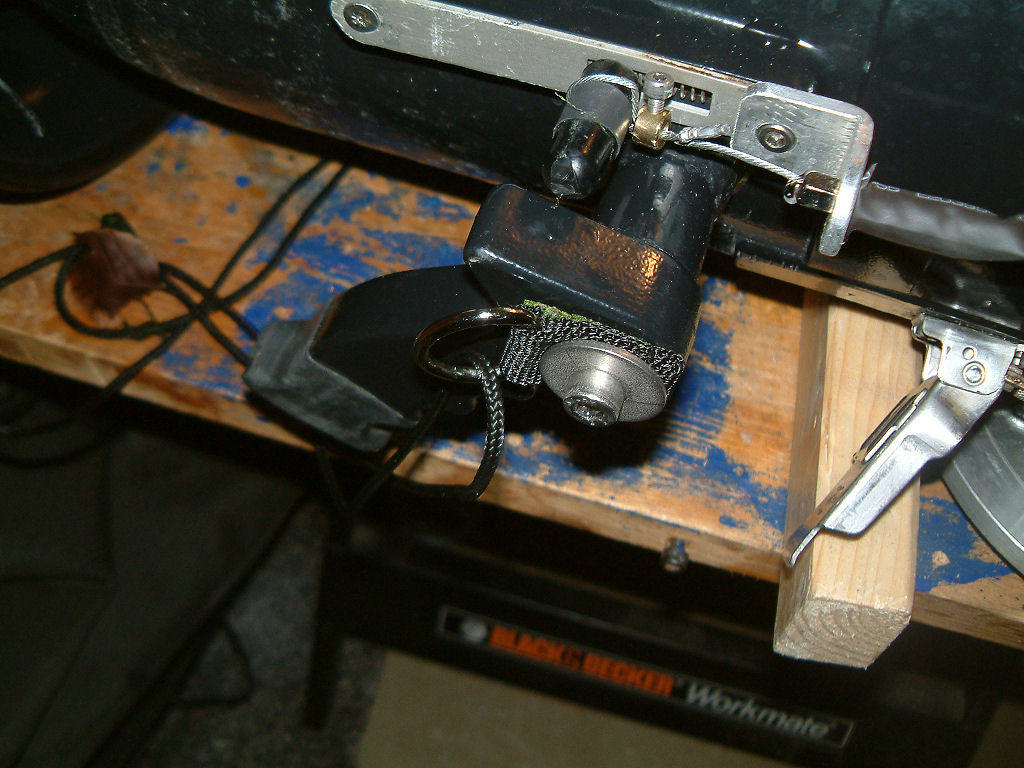

Real nice, heavy duty mecanics.
 MeScoot_B_050_t.jpg |
 MeScoot_B_051_t.jpg |
 MeScoot_B_052_t.jpg |

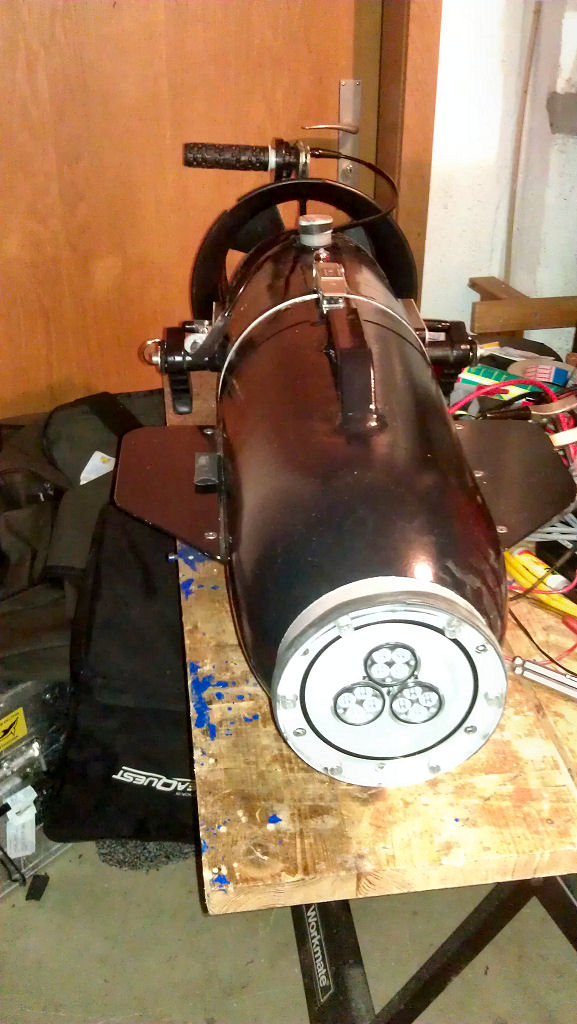

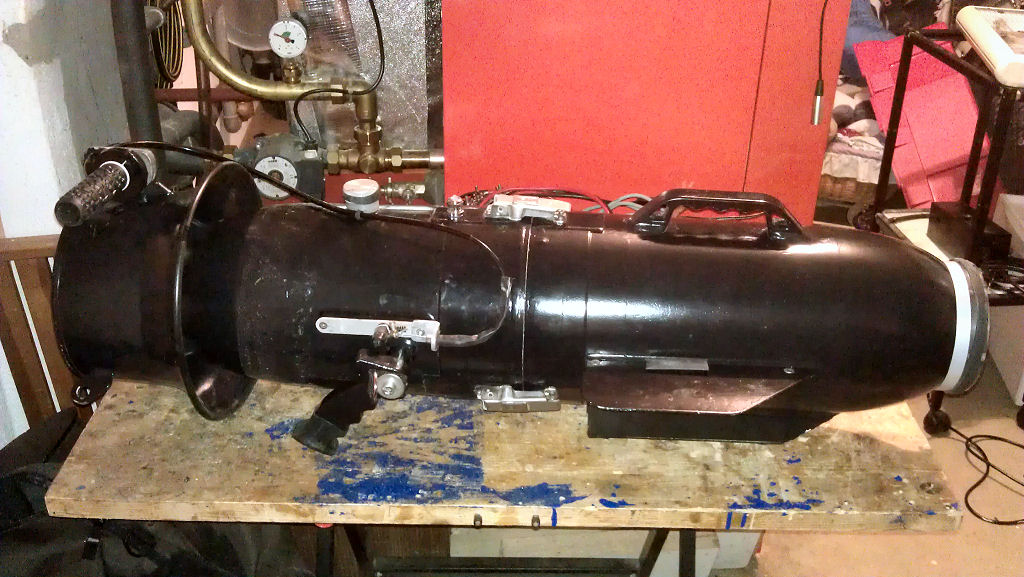

Finally finished.
 MeScoot_B_053_t.jpg |
 MeScoot_B_054_t.jpg |

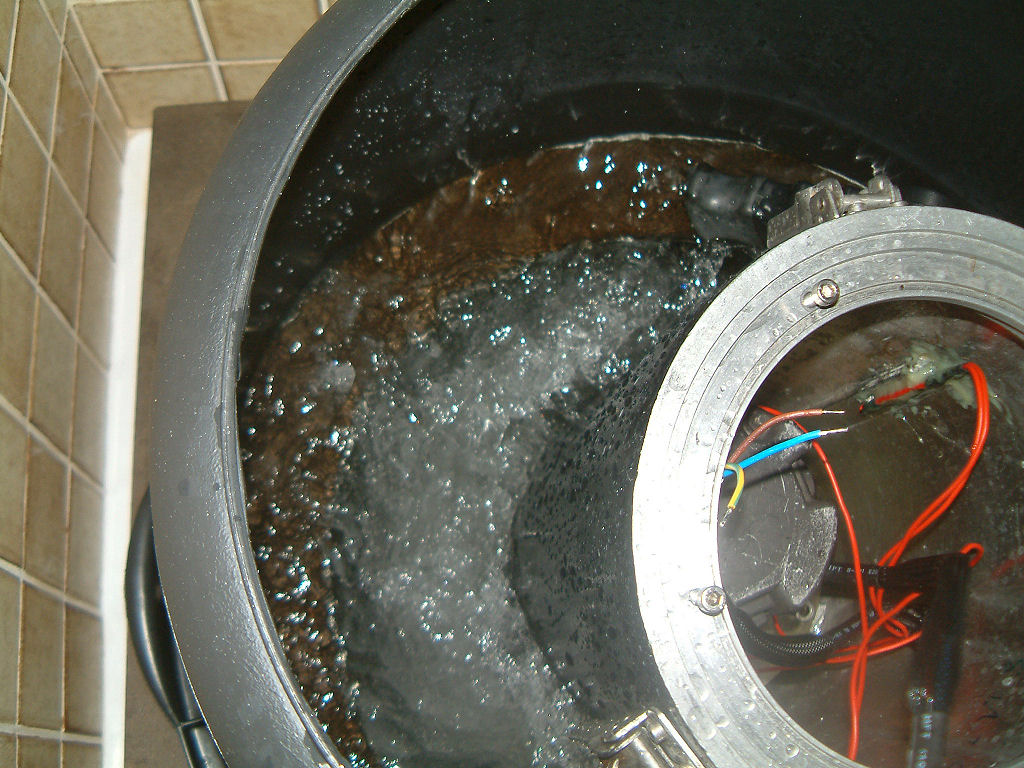

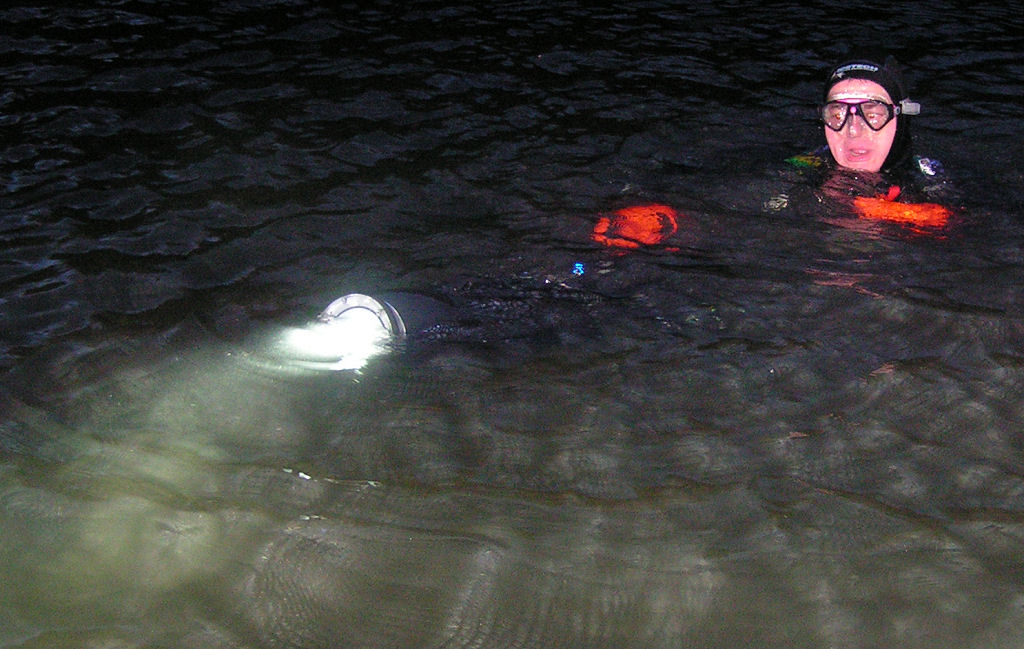

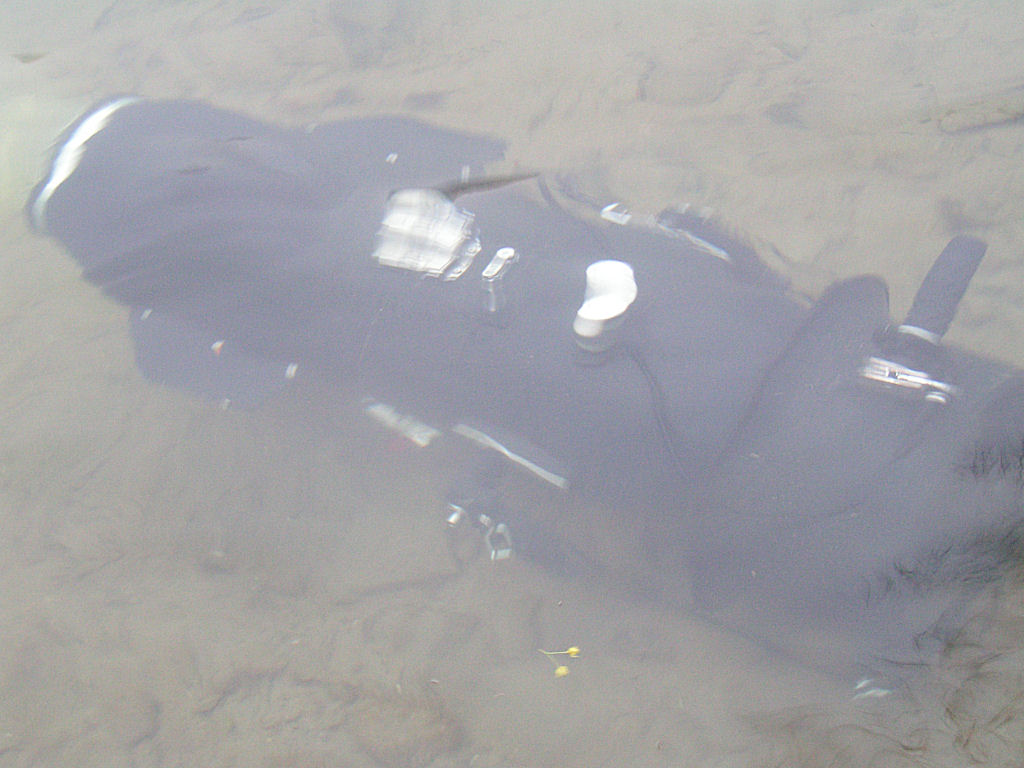

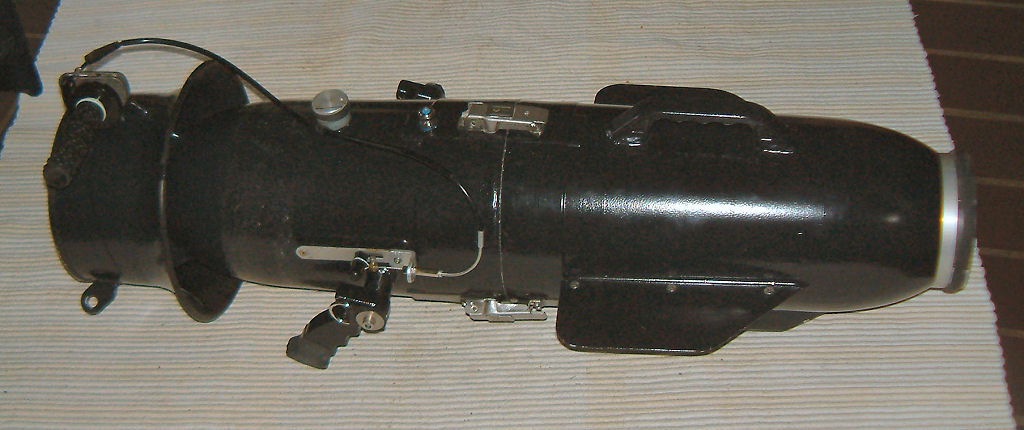

The day of water test arrived! Full sucess.
 MeScoot_B_055_t.jpg |
 MeScoot_B_056_t.jpg |
 MeScoot_B_057_t.jpg |
 MeScoot_B_058_t.jpg |
 MeScoot_B_059_t.jpg |
 MeScoot_B_060_t.jpg |
A short measure showed more than 25 KG propulsion power.
| Type | Modified French military scooter |
| Size | 120 cm x 25 cm diameter |
| Weight | Full balanced 34 kg |
| Battery | LiFePO4 48V 15 Ah |
| Motor | > 1000 w |
| Headlight | > 5000 lumen gross |
| Thrust in Water | > 25 Kg |
| Depth | Old value 120 m |
| Specialties | Fully microprocessor controlled Speed regulated Motor current regulated Different ramp up/down Speed regulated Five brightness steps Timed Auto Off |
